High Volume 56kW 4000L/h Double-Stage Vacuum Transformer Oil Purifier

High Volume 56kW 4000L/h Double-Stage Vacuum Transformer Oil Purifier
High Volume 56kW 4000L/h Double-Stage Vacuum Transformer Oil Purifier High Volume 56kW 4000L/h Double-Stage Vacuum Transformer Oil Purifier High Volume 56kW 4000L/h Double-Stage Vacuum Transformer Oil Purifier High Volume 56kW 4000L/h Double-Stage Vacuum Transformer Oil Purifier High Volume 56kW 4000L/h Double-Stage Vacuum Transformer Oil Purifier High Volume 56kW 4000L/h Double-Stage Vacuum Transformer Oil Purifier
Basic Information
Place of Origin: China
Brand Name: SINO-NSH
Certification: CE, ISO,SGS, SASO, SONCAP
Model Number: VFD-75
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now
Product Power: 56kW Product Capacity: 4000L/h
Color: Custom Power Supply: Fully Customizable
Material: Stainless Steel/Carbon Steel Warranty: 1years
After Warranty Service:: Video Technical Support, Online Support Product Name: Double-Stage Vacuum Transformer Oil Purifier
Highlight:

Decontamination Transformer Oil Purifier

,

Single Axle Wheels Transformer Oil Purifier

,

Enclosed Dehydration Transformer Oil Purifier

High Volume 56kW 4000L/h Double-Stage Vacuum Transformer Oil Purifier​





56kW 4000L/h Vacuum Transformer Oil Purifier Description:


NSH VFD series utilizes coacervation technology,coalescing technology,separating technology and refined purification technology.Comparing to Model VF series,it add ROOTS Vacuum system,second stage of separating system to improve the effect of purification. To remove free,soluble water,carbon,free and dissovled gases and particulate matters from insulating oil effectively and rapidly.
For the treatment of aging transformer oil and deteriorated transformer oil, we recommend VFD-R series to regenerate them.





Transformer Oil Purifier Function:


It can to increase special indexes of insulation oil through remove dissolved and free water, dissolved gas and particulate impurities effectively.Oil purification is a vital undertaking that helps in the maintenance of machines.

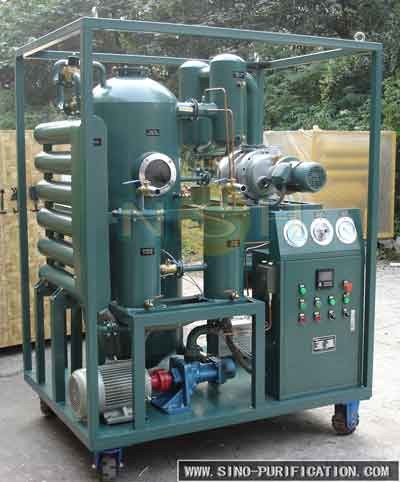

High Volume 56kW 4000L/h Double-Stage Vacuum Transformer Oil Purifier 0





Other Optional for Transformer Oil/Insulation Oil:


VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine



Double-Stage Vacuum Transformer Oil Purifier Technical Parameters:



Parameters Value
VFD-30 VFD-50 VFD-75 VFD-100 VFD-150 VFD-200 VFD-300
Capacity, liters/hour 1800 3000 4000 6000 9000 12000 18000
Heating Power, kW 24 30 48 60 90 120 150
Total Power, kW 29 36 56 69 100 132 170
Power supply Fully Customizable
Inlet Diameter, mm 25 32 32 40 40 50 65
Outlet Diameter, mm 25 32 32 40 40 50 65
Dimensions
(without trailer)		 length, mm 1350 1500 1550 1900 2200 2400 2900
width, mm 1100 1200 1250 1400 1500 1600 1800
height, mm 1700 1750 1800 1800 1850 1900 2000
Weight(without trailer), kg 600 800 900 1150 1500 1700 2400
Processed Oil Spec Water Content, ppm ≤5
Dielectric Strength, Kv ≥75
Filtration Fineness, um ≤5( or 1-5 as needed )
Gas Content, % ≤0.1





Corollary Equipment-VR Vacuum Pump Set


SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Parameter Value
VR-30 VR-70 VR-150 VR-300 VR-600 VR-900
Capacity, liters/hour 100 250 500 1000 2000 3000
Total Power, kW 3 3 5 7 8 13
Power supply Fully Customizable
Maximum Vacuum Range,Pa 0.06
Outlet Diameter, mm 32 32 40 40 50 65
Dimensions length, mm 900 550 1000 1200 1500 1950
width, mm 800 900 800 800 1000 1800
height, mm 1200 800 1200 1200 1200 1300
Weight(without trailer), kg 450 550 600 900 950 1950





Package & Delivery:

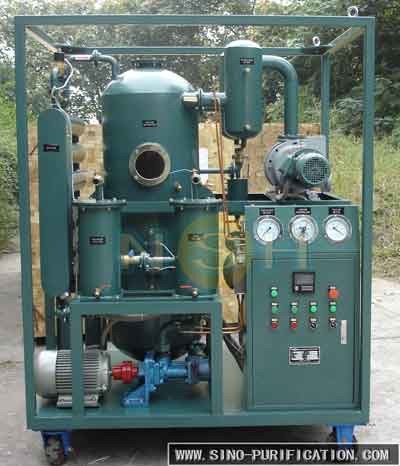

High Volume 56kW 4000L/h Double-Stage Vacuum Transformer Oil Purifier 1

Tag:

transformer oil filtration plant,

transformer oil filtration system,

transformer oil purification machine
