Place of Origin: | China |
---|---|
Brand Name: | Sino-NSH |
Certification: | ISO, CE |
Model Number: | SINO-NSH-GED-WD |
Minimum Order Quantity: | 1 |
Packaging Details: | Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks |
Delivery Time: | 12 working days |
Payment Terms: | T/T |
Supply Ability: | 100/month |
Name: | Distillation Machine | Color: | As Your Requirement |
---|---|---|---|
Function: | Dehydration, Degassing, Remove Impurities | Power Supply: | 380V/3P/50Hz(or As Needed) |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ||
High Light: | Degassing Distillated Engine Oil Purifier,5T/D Distillated Engine Oil Purifier,Distillated Engine Oil Purifier 16KW |
Used engine oil purifier distillation machine to diesel
Sino-NSH-GED-WD is a waste oil regeneration system that cracks waste oil to diesel fuel.
Sino-NSH-GED-WD adopts the atmospheric distillation technology, also known as cracking technology.During the distillation process, the waste oil is heated to the setting temperature and turns into oil mist, then it passes through the catalyst tower. After sufficient reaction with the catalyst, the oil mist passes through the condensing system to be control to liquid diesel. This system can be applied for gasoline motor oil, diesel motor oil, all kinds of engine oil, mineral oil, synthetic oil, transmission oil, hydraulic oil, gear oil and other used black lubricant oils to produce clean diesel oil.
Diesel acquired from NSH-GED-WD system meets international standard and can be fully applied to burners, diesel engines, generators etc. This system is very safe because the temperature setting is rigorous and the machines is stabilization. Our technical team commits to design the most reasonable and high efficient distillation system to realize the profit maximization of the both parties. Recovery rate is above 90% with low operation cost, only 5-6 USD for recycling one ton used oil.
Specification:
Parameter | Value | |||||||
GED-WD-1 | GED-WD-2 | GED-WD-3 | GED-WD-4 | GED-WD-5 | GED-WD-10 | GED-WD-20 | ||
Capacity,Ton/Day | 1 | 2 | 3 | 4 | 5 | 10 | 20 | |
Total Power,kW | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
Heating Method | Fuel,gas or electric heating | |||||||
Working Pressure,MPa | Atmospheric Distillation | |||||||
Working Temperature,℃ | 0-350 | |||||||
Power Supply | Fully customizable | |||||||
Land Area,㎡ | 25 | 30 | 50 | 65 | 70 | 100 | 150 | |
Weight,Ton | 2 | 3 | 5 | 6 | 10 | 14 | 20 | |
Recovery Rate,% | ≥90 | |||||||
Oil Appearance | Clear&Bright |

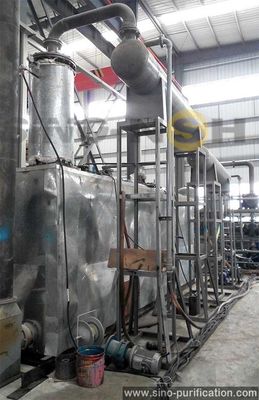

Products show:
Company and factory information:
Sino-NSH Oil Purifier Manufacture Co.,Ltd is a leading manufacture of oil purification and regeneration systems worldwide.
NSH products are extensively used in the field of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway, aviation etc. to meet different demands of customers. And tailored solutions are provided for special applications.
