Degassing Transformer Oil Filtration Machine Insulation Oil Purifier

Basic Information

Place of Origin:	CHINA
Brand Name:	SINO-NSH
Certification:	ISO, CE
Model Number:	VF

Minimum Order Quantity:	1 Set
Packaging Details:	Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks
Delivery Time:	15 working days
Supply Ability:	50 sets per month

Get Best Price Contact Now

Function:	Dehydration,Degassing, Remove Impurities	Flow Rate:	600-18000L/H
Power Supply:	380V/3P/50Hz(or As Needed)	Warranty:	1 Year
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Color:	As Your Requirement
Product Name:	Oil Purifier Oil Filtration	Application:	Oil Treatment Oil Recycling
Highlight:	Degassing Transformer Oil Filtration Machine , 380V Transformer Oil Filtration Machine , 65kV Transformer Oil Filtration Machine

VF Series vacuum transformer oil filtration machine NSH Transformer Oil Purifier

Description:

Sino-NSH-VF oil purifier is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment(dielectric oils, transformer oil, cable oil, socket charger and medium voltage circuit breaker oil etc). It can remove dissolved and free water, dissolved gas and particulate impurities effectively so as to increase special indexes of insulation oil.

Sino-NSH-VF oil purifier combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating thermal and vacuum, the breakdown voltage is improved, which can be increased from 20kV to over 65kV, the water content can be reduce to less than 7ppm, and the impurities can be removed to 1-5 um as your requirements.

Sino-NSH-VF oil purifier maintains an optimized structure and safe controls so as to meet comprehensive requirement of transformer manufacturers and service companies.

Feature:

1. To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
2. Enhance the value of breakdown voltage greatly.
3. Easy handling and maintenance.
4. Inject oil into the transformers
5. Online work
6. Lower maintenance and replacement expenses
7. High efficiency and effectiveness
8. Available in mobile or stationary options.
9. Small size, light weight, low noise
10.Various sizes and configurations (alloy shield) available

Available type:

Mobile mounted on 4 wheels base frame and covered steel frame

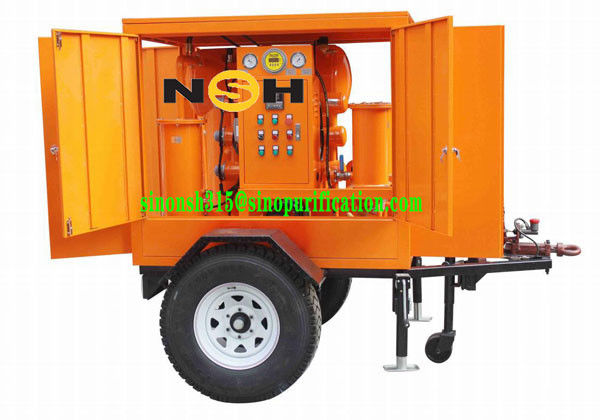

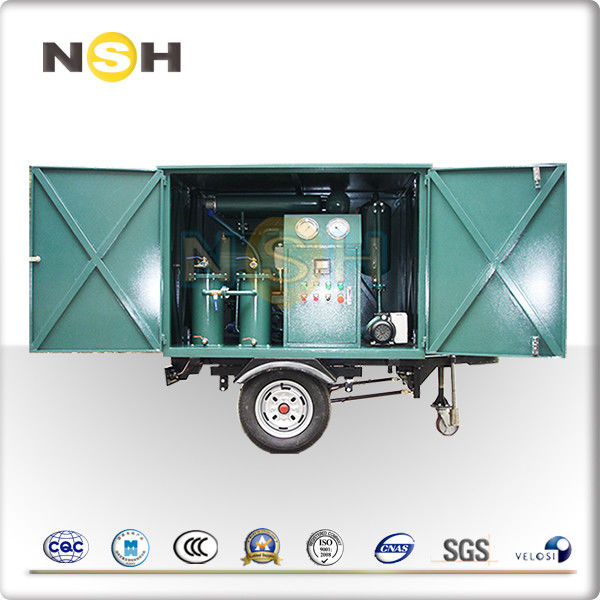

Single/Double axle trailer: mounted on chassis with pneumatic tyres,covered steel shield. Air brake system, hand brake, rear lights, tow-eye etc.

Item		Unit	VF-20
Flow Rate		L/H	1200
Vacuum Range		Mpa	-0.065 ~ -0.096
Working Pressure		Mpa	≤ 0.3
Max Vacuum Range		Pa	≤ 100
Temperature Range		ºC	45 ~ 80
Breakdown Voltage		kV	≥ 65
Impurity Size		μ m	≤ 3
Water Content		PPM	≤ 7
Gas Content		%	≤ 0.1
Power Supply		V	380V/3P/50Hz(or as needed)
Working Noise		dB	≤ 70
Heating Power		Kw	30
Total Power		Kw	33
Pipeline Diameter		mm	DN25
Net Weight		Kg	330(without trailer)
Size	length	mm	1400
	width	mm	900
	height	mm	1300

-All power calculations are for 380 Volts, 3 Phase, 50Hz.
-The power supply is customizable accords to your practical.
-Please consult with sales team for more
