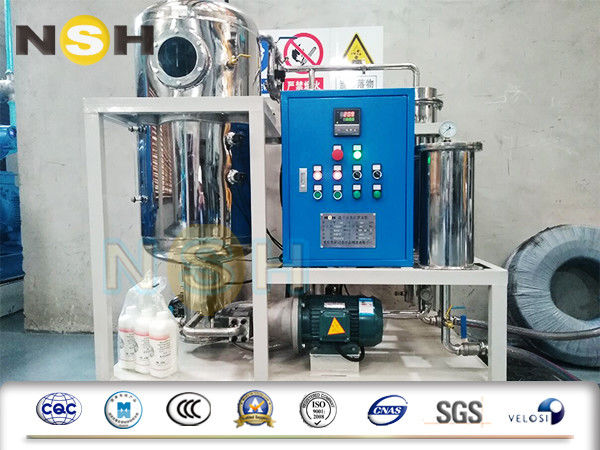

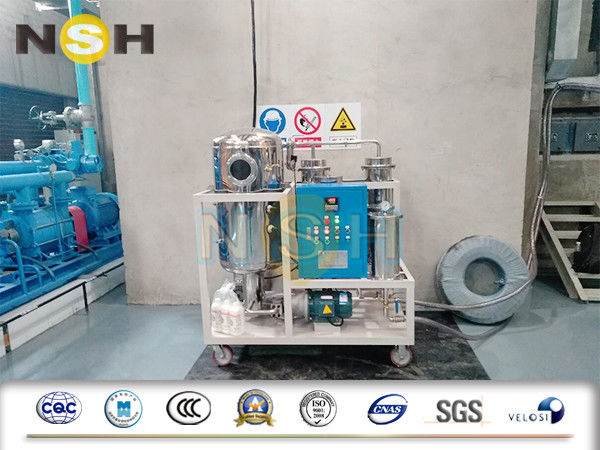

Petroleum OD 40MM SS Turbine Oil Filtration Machine

Petroleum OD 40MM SS Turbine Oil Filtration Machine
Petroleum OD 40MM SS Turbine Oil Filtration Machine Petroleum OD 40MM SS Turbine Oil Filtration Machine Petroleum OD 40MM SS Turbine Oil Filtration Machine Petroleum OD 40MM SS Turbine Oil Filtration Machine Petroleum OD 40MM SS Turbine Oil Filtration Machine Petroleum OD 40MM SS Turbine Oil Filtration Machine Petroleum OD 40MM SS Turbine Oil Filtration Machine Petroleum OD 40MM SS Turbine Oil Filtration Machine Petroleum OD 40MM SS Turbine Oil Filtration Machine
Basic Information
Place of Origin: china
Brand Name: SINO-NSH
Certification: ISO9001
Model Number: TF
Minimum Order Quantity: 1
Price: iso9001
Packaging Details: woodencase
Delivery Time: 30 working days
Supply Ability: 50 sets/month
Get Best Price Contact Now
Function: Oil Purifier,oil Purification,oil Recycling,oil Tratment,oil Recovery Power: 380v/ Three Phase
Weight: 800-1600KGS, 330kg, 400Kg, 2200, 250kg Usage: Lubricant Oil, Transformer Oil, Oil Filtration, Waste Oil Distillation Plant, Used Hydraulic Oil Filtration Machine
Warranty: 1 Year Name: High Vacuum Transformer Oil Purifier, Used Oil Oil Recycling Machine, Filter Element Separator Z1201652 Replacement Turbine Oil Purifier, TL Series Appropriative Vacuum Waste Oil Recycle Turbine Oil Purifier
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas, Commissioning And Training, Field Installation, Online Support, Overseas Service Center Available
Highlight:

SS Turbine Oil Filtration Machine

,

OD 40MM Oil Filtration Machine

,

ISO Turbine Oil Filtration Machine

oil purificaion oil teatment oil filtration tubine oil purifier



NSH-TF-E Explosion-Proof Turbine Oil Purifier



Sino-NSH-TF-E oil purifier is Explosion-proof type designed for flammable and combustible working conditions in power plant, petroleum, petrochemical, chemistry, coal mining, metallurgy and other industries.



Sino-NSH-TF-E oil purifier adds an explosion-proof system compare to NSH-TF, using comprehensive explosion-proof technology. The components such as heating system, electric control system, motor and solenoid valves etc are well-selected Explosion-proof type adapt to different danger level.



Any custom presentation option
1Explosion proof
2All stainless steel housings
3Skid base : base frame & 4 caster wheels
4Steel shield: metallic enclosure cover
5Single axle trailer: mounted on chassis with two pneumatic tyre, pre-leg, break system, rear lights, tow-eye, etc.
6Double axle trailer: mounted on chassis with four pneumatic tyre, pre-leg, break system, rear lights, tow-eye, etc.
7Separated operation room: with inspection window, air conditioning, operating desktop, storage space, etc. Any custom option.



Technical data



Parameter Value
TF-150 TF-300
Capacity, liters/hour 9000 18000
Heating Power, kW 72 120
Total Power, kW 78 129
Power Supply Fully customizable
Inlet Diameter, mm 40 65
Outlet Diameter, mm 40 65
Dimensions
(without trailer)		 length, mm 1850 2400
width, mm 1250 1700
height, mm 1610 1760
Weight (without trailer), kg 750 1500
Processed Oil Spec Water Content, ppm ≤ 100
Cleanliness (NAS 1638) ≤ 6
Filtration Fineness, um ≤ 5 (or 1-5 as needed)
Emulsification value, min ≤ 15



Petroleum OD 40MM SS Turbine Oil Filtration Machine 0
