Place of Origin: | CHINA |
---|---|
Brand Name: | SINO-NSH Oil Purifier Manufacture Co.,Ltd |
Certification: | ISO, CE |
Model Number: | TF |
Minimum Order Quantity: | 1 Set |
Packaging Details: | Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks |
Delivery Time: | 10 working days |
Supply Ability: | 50 sets per month |
Function: | Waste Oil Recycling, Transformer Oil Purification, Deacidification, Degassing, Dehydration | Application: | Oil Purifier,oil Purification,oil Filtering |
---|---|---|---|
Flow Rate: | 600-18000L/H | Power Supply: | 380V/3P/50Hz(or As Needed) |
Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Color: | As Your Requirement | Certification: | ISO9001 |
High Light: | 600L/H Oil Purification Machine,Remove Impurities Turbine Oil Purifier,380V Oil Purification Machine |

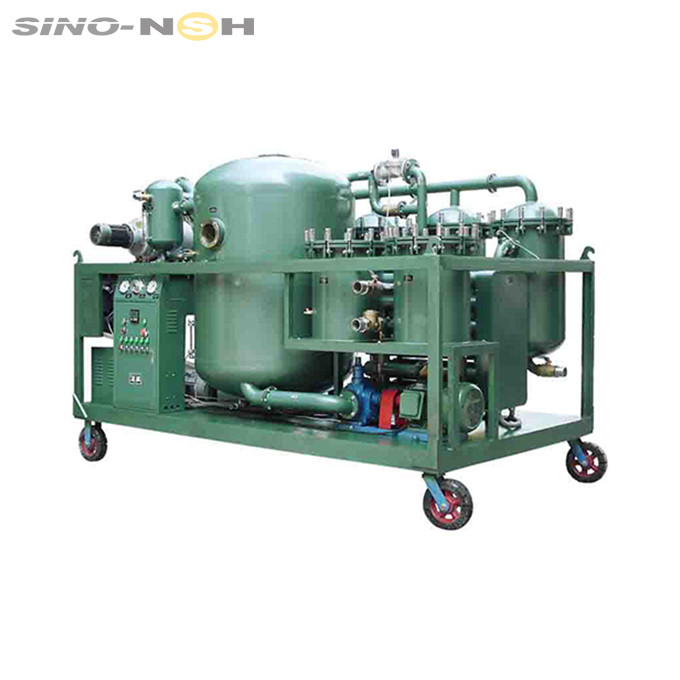

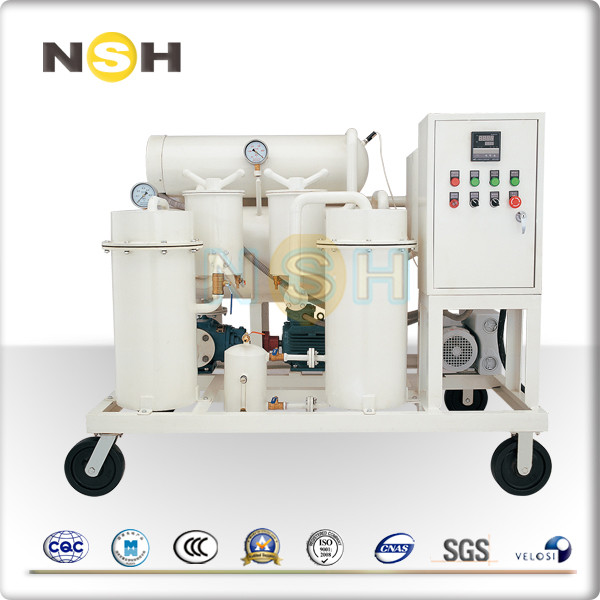

380V Lubrication Turbine 600L/H Oil Purification Machine Turbine Oil Purifier
1.Turbine Oil Purifier Application
The lubrication of turbine or other equipments which has lubrication system need be replaced frequently because of vapor,water and other impurities mixed with it.Otherwise,oil deterioration would result in breakdown of machinery or affect the normal running of machinery.
TF series will result in the improvement of the properties of turbine oil or other lubrication and extending the maintenance period of turbines or other equipments which have lubrication system and keep them operate in good condition.
TF series is particularly suitable for purifying used black turbine oil. It also applys to treat hydraulic,coolant oil and other lubrication oils in which contain large amount of water and others such as vapor,impurities,sludge,dielectric and colloid.
2. Turbine Oil Purifier Description
TF turbine oil purifier series is developed by vacuum evaporation technology,coacervation technology,coalescing technology,separating engineering technology and refined purification technology.
TF can eliminate water,gas,impurities,colloid,dielectric etc. rapidly and effectively in high vacuum situation and make the waste oil reuse.
TF oil purifier can effectively extend the lifetime of oil and protect turbine and other machinery which has lubrication system from damage.
3. Turbine Oil Purifier Features
1. Eliminate soluble and dissolved water effectively and demulsify rapidly.
TF oil purifier can not only separate large quantity of water but also remove trace water from oil.Fitted with specially made demulsifying device(water separator).It is capable of making turbid emulsified oil very clear.
2. High effectively purify matters in oil such as impurities,sludge etc.
The automatic backwashsystem can remove large amount of particulate matters and fine filter system can remove tiny particles.
3. High automation,stability and operation online High automation,small size,light weight,safety,and reliability.Installed with inrared liquid level automatic controller,the purifier machine will run automatically and easy handling.
4. Turbine Oil Purifier Available Style
1. Fixing type,mobile type with four wheels and mobile type with trailer.
2. Normal appearance type,shelf-covering type and explosion-proof type.
3. Avaliable in different color.
5. Relative Series:
VFD series oil pufier: Insulation oil purifier System specialize in purifying branded oil, insulation oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
TF series oil purifier: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series oil purifier: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series oil purifier: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
GED series oil purifier: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
6. Turbine Oil Purifier Technical Specification
Item | Unit | TF-10 | TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | |
Flow Rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | |
Vacuum Range | Mpa | -0.06 ~ -0.096 | |||||||
Working Pressure | Mpa | ≤0.3 | |||||||
Clearness | NAS | ≤6 | |||||||
Temperature Range | ℃ | 40 ~ 80 | |||||||
Water Content | PPM | ≤100 | |||||||
Impurity Size | μm | ≤5 | |||||||
Demulification Number | Min | <15 | |||||||
Power Supply | 380V/3P/50Hz(or as needed) | ||||||||
Working Noise | dB(A) | ≤70 | ≤75 | ||||||
Heating Power | Kw | 9 | 18 | 30 | 36 | 72 | 90 | 120 | |
Total Power | Kw | 11 | 20 | 34 | 41 | 78 | 96 | 126 | |
Pipeline Diameter | mm | DN20 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | |
Net Weight | Kg | 320 | 400 | 420 | 550 | 750 | 850 | 950 | |
Size | length | mm | 1280 | 1300 | 1400 | 1550 | 1700 | 1800 | 1900 |
width | mm | 750 | 900 | 1050 | 1100 | 1300 | 1400 | 1500 | |
high | mm | 1450 | 1450 | 1600 | 1700 | 1850 | 1950 | 2050 |
