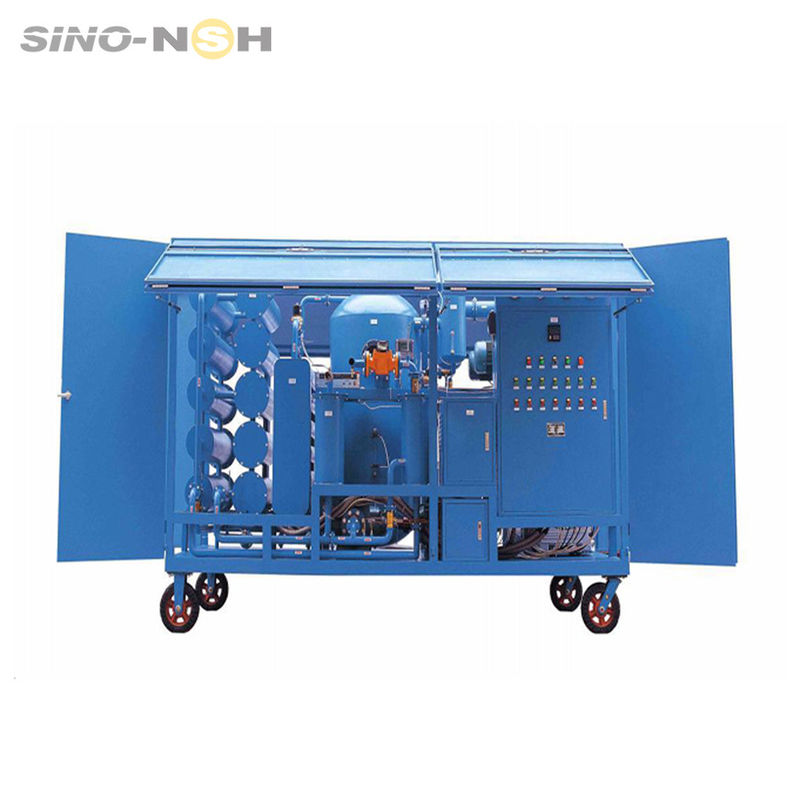

High Efficiency Transformer Oil Purifier For Electric Equipment Remove Impurities

Basic Information

Place of Origin:	China
Brand Name:	Sino-NSH
Certification:	CE ISO
Model Number:	VFD

Minimum Order Quantity:	one set
Price:	Negotiate
Packaging Details:	Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks
Delivery Time:	10 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets per month

Get Best Price Contact Now

Function:	Dehydration, Degassing, Remove Impurities	Material:	Stainless Steel
Color:	Red	Power(w):	40-135Kw
Flow:	1800 L/h-18000L/h	Usage:	Transformer Oil,Insulation Oil
Highlight:	transformer oil filtration plant , transformer oil filtration system

Vacuum Transformer Mobile Oil Treatment Plant / Insulating Oil Portable Oil Purifier

Description of transformer oil purifier

High Vacuum transformer oil treatment is mainly used for removing trace water, gas and impurities from insulating oil, improving the insulating oil performance index. It is mainly applied to purification of 110KV,220KV,500KV,750KV,1000KV power transmission equipment insulating oil.Also it applied to treat low viscosity oils, like insulating oil, turbine oil, and hydraulic oil in the transmission equipment which is lower than 110KV.

Features:

1. Horizontal double vacuum separation technology, doubling the evaporation area and degassing time

2. Multi-stage precise filtration system with gradually increasing precision, which can effectively remove mechanical impurities from oil.

3. Automatic double-infrared liquid level controller, pressure protector, which ensure long-term safely and reliable operation.

4. Automatic defoaming system with dual electronic monitoring system, which avoid the foam ejecting and gushing to vacuum pump.

5. Advanced cooling system of vacuum pump, it reduces the frequency of oil’s replacement and extends the life of vacuum pump.

6. Interlocked protective system connects oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

7. Online oil treatment, vacuum drying and vacuum oil-filling for electric equipments.

Technical Specification of oil purifier machine

Technical Specification
Item		Unit	VFD-30	VFD-50	VFD-80	VFD-100	VFD-150	VFD-200	VFD-300
Flow Rate		L/H	1800	3000	4800	6000	9000	12000	18000
Vacuum Range		Mpa	-0.092 ～ -0.099
Working Pressure		Mpa	≤0.2
Max Vacuum Range		Pa	≤50
Temperature Range		℃	45 ～ 65
Breakdown Voltage		Kv	≥75
Impurity Size		μm	≤5
Dielectric Loss		Tg	≤0.005
Interfacial Tension		mn/m	≥40
Water Content		PPM	≤4
Gas Content		%	≤0.1
Power Supply			380V/3P/50Hz(or as needed)
Working Noise		dB(A)	≤72				≤78
Heating Power		Kw	30	48	72	90	120	180	240
Total Power		Kw	35	54	77	98	129	189	254
Pipeline Diameter		mm	DN25	DN32	DN32	DN40	DN50	DN65	DN65
Net Weight		Kg	550	850	1000	1100	1400	1600	2200
Size	length	mm	1500	1500	1700	1900	2100	2100	2600
	width	mm	1200	1200	1500	1400	1550	1550	1800
	high	mm	1750	1750	1850	1800	1900	1900	2000

High Efficiency Transformer Oil Purifier For Electric Equipment Remove Impurities 0
