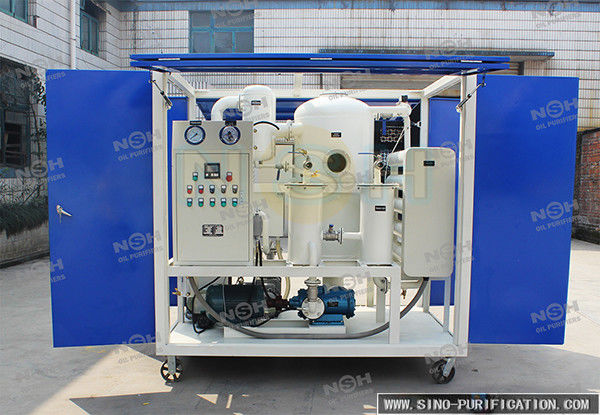

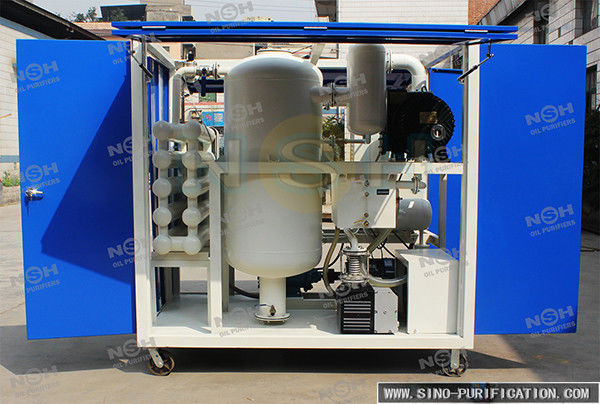

ABB Insulation Oil Dehydration Machine For Transformer Substation , Weather Proof Cover And Trailer

ABB Insulation Oil Dehydration Machine For Transformer Substation , Weather Proof Cover And Trailer
ABB Insulation Oil Dehydration Machine For Transformer Substation , Weather Proof Cover And Trailer ABB Insulation Oil Dehydration Machine For Transformer Substation , Weather Proof Cover And Trailer ABB Insulation Oil Dehydration Machine For Transformer Substation , Weather Proof Cover And Trailer ABB Insulation Oil Dehydration Machine For Transformer Substation , Weather Proof Cover And Trailer ABB Insulation Oil Dehydration Machine For Transformer Substation , Weather Proof Cover And Trailer ABB Insulation Oil Dehydration Machine For Transformer Substation , Weather Proof Cover And Trailer ABB Insulation Oil Dehydration Machine For Transformer Substation , Weather Proof Cover And Trailer ABB Insulation Oil Dehydration Machine For Transformer Substation , Weather Proof Cover And Trailer ABB Insulation Oil Dehydration Machine For Transformer Substation , Weather Proof Cover And Trailer
Basic Information
Place of Origin: CHINA
Brand Name: Sino-NSH
Certification: ISO, CE
Model Number: VFD
Minimum Order Quantity: 1 Set
Packaging Details: Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks
Delivery Time: 10 working days
Supply Ability: 50 sets per month
Get Best Price Contact Now
Function: Dehydration, Degassing, Remove Impurities Flow Rate: 600-18000L/H
Warranty: 1 Year Power Supply: 380V/3P/50Hz(or As Needed)
After-sales Service Provided: Engineers Available To Service Machinery Overseas Color: As Your Requirement
Highlight:

vacuum oil filter machine

,

oil purification systems



Sino-NSH Double Stage Vacuum Insulating Oil Purifier Machine

ABB Insulation Oil Dehydration Machine For Transformer Substation , Weather Proof Cover And Trailer 0



I. Transformer Oil Dehydration Description

Double stage Vacuum Oil Dehydration Machine will greatly improve the effect of oil filtration. It can greatly improve the properties of transformer oil, by removing trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers.



II. Transformer Oil Dehydration Flow
1. Transformer Oil Inlet
2. Primary Filter filtrate large size particles out.
3. Oil is heated to a set temperature by electrical heater.
4. Dehydration and Degassing under vacuum.
5. Fine filter filtrate small impurities less than 1 micron.
6. Transformer Oil Outlet.

7. Moisture and gas is condensed into water and discharged by vacuum pump system.



III. Transformer Oil Dehydration Advantages
1. High efficiency and effectiveness.
2. Enhance the value of breakdown voltage greatly.
3. Easy handling and maintenance.
4. Online work.
5. Lower maintenance and replacement expenses.
6. Small size, light weight, low noise
7. Various sizes and configurations (shield) available.



V. Technical Specification of Vacuum Oil Purifier



Technical Specification
Item Unit VFD-30 VFD-50 VFD-80 VFD-100 VFD-150 VFD-200 VFD-300
Flow Rate L/H 1800 3000 4800 6000 9000 12000 18000
Vacuum Range Mpa -0.092 ～ -0.099
Working Pressure Mpa ≤0.2
Max Vacuum Range Pa ≤50
Temperature Range ℃ 45 ～ 65
Breakdown Voltage Kv ≥75
Impurity Size μm ≤5
Dielectric Loss Tg ≤0.005
Interfacial Tension mn/m ≥40
Water Content PPM ≤4
Gas Content % ≤0.1
Power Supply 　 380V/3P/50Hz(or as needed)
Working Noise dB(A) ≤72 ≤78
Heating Power Kw 30 48 72 90 120 180 240
Total Power Kw 35 54 77 98 129 189 254
Pipeline Diameter mm DN25 DN32 DN32 DN40 DN50 DN65 DN65
Net Weight Kg 550 850 1000 1100 1400 1600 2200
Size length mm 1500 1500 1700 1900 2100 2100 2600
width mm 1200 1200 1500 1400 1550 1550 1800
high mm 1750 1750 1850 1800 1900 1900 2000


VI. Available Style

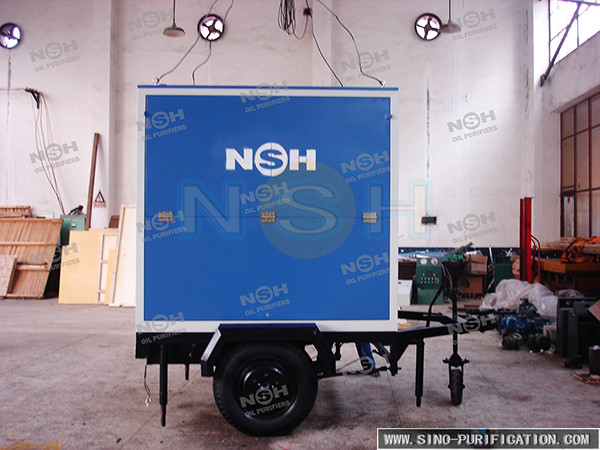

1. Fixing type,mobile type with four wheels and mobile type with trailer.
2. Normal appearance type,shelf-covering type and explosion-proof type.
3. Avaliable in different color.


VII. Relative Series:



VFD series: Insulation oil purifier System specialize in purifying branded oil, insulation oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
TF series: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.

GED series: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
