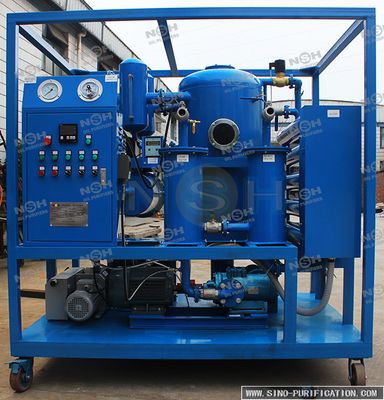

Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron

Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron
Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron
Basic Information
Place of Origin: CHINA
Brand Name: Sino-NSH
Certification: ISO, CE
Model Number: VFD
Minimum Order Quantity: 1 Set
Packaging Details: Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks
Delivery Time: 10 working days
Supply Ability: 50 sets per month
Get Best Price Contact Now
Function: Dehydration, Degassing, Remove Impurities Flow Rate: 600-18000L/H
Warranty: 1 Year Power Supply: 380V/3P/50Hz(or As Needed)
After-sales Service Provided: Engineers Available To Service Machinery Overseas Color: As Your Requirement
Highlight:

vacuum oil filter machine

,

oil purification systems





NSH Double-Stage Vacuum Transformer Oil Filtration Machine



Insulation Vacuum Oil Purifier Transformer Maintenance Tool Fine Precision Of 1 Micron 0



I. Transformer Oil Purification Description
 VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer by removing free,soluble water,carbon,free and dissovled gases and particulate matters from insulating oil effectively and rapidly.





II.Transformer Oil Purification Parameters


1. Flow Rate: 600 liters/hour ~ 18000 liters/hour
2. Moisture content after purification: less than 4 PPM
3. Gas content after purification: less than 0.1%
4. Breakdown voltage after purification: more than 75 KV




III. Transformer Oil Purification Edges
1. High efficiency and effectiveness.
2. Enhance the value of breakdown voltage greatly.
3. Easy handling and maintenance.
4. Online work.
5. Lower maintenance and replacement expenses.
6. Small size, light weight, low noise
7. Various sizes and configurations (shield) available.



IV. Technical Specification of Vacuum Oil Purifier



Technical Specification
Item Unit VFD-30 VFD-50 VFD-80 VFD-100 VFD-150 VFD-200 VFD-300
Flow Rate L/H 1800 3000 4800 6000 9000 12000 18000
Vacuum Range Mpa -0.092 ～ -0.099
Working Pressure Mpa ≤0.2
Max Vacuum Range Pa ≤50
Temperature Range ℃ 45 ～ 65
Breakdown Voltage Kv ≥75
Impurity Size μm ≤5
Dielectric Loss Tg ≤0.005
Interfacial Tension mn/m ≥40
Water Content PPM ≤4
Gas Content % ≤0.1
Power Supply 　 380V/3P/50Hz(or as needed)
Working Noise dB(A) ≤72 ≤78
Heating Power Kw 30 48 72 90 120 180 240
Total Power Kw 35 54 77 98 129 189 254
Pipeline Diameter mm DN25 DN32 DN32 DN40 DN50 DN65 DN65
Net Weight Kg 550 850 1000 1100 1400 1600 2200
Size length mm 1500 1500 1700 1900 2100 2100 2600
width mm 1200 1200 1500 1400 1550 1550 1800
high mm 1750 1750 1850 1800 1900 1900 2000


V. Available Style
1. Fixing type,mobile type with four wheels and mobile type with trailer.
2. Normal appearance type,shelf-covering type and explosion-proof type.
3. Avaliable in different color.


VI. Relative Series:



VFD series: Insulation oil purifier System specialize in purifying branded oil, insulation oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
TF series: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.

GED series: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
