Place of Origin: | CHINA |
---|---|
Brand Name: | Sino-NSH |
Certification: | ISO,CE,SGS,SASO |
Model Number: | VFD |
Minimum Order Quantity: | 1 Set |
Packaging Details: | Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks |
Delivery Time: | 10 Working days |
Supply Ability: | 30 sets per month |
Condition: | Brand New | Product Name: | Transformer Oil Filtration Machine |
---|---|---|---|
Functions: | Dehydration, Degassing, Remove Impurities | Flow Rate: | 1800 - 18000 Lph |
Filtration Precision: | ≤1μm | Water Content: | ≤3 PPM |
Power Supply: | 380V/3P/50Hz(or As Needed) | ||
Highlight: | oil regeneration machine,oil treatment equipment |
Ultra-high voltage transformer oil filtration machine for more than 350KV Grid,electrical insulation oil treatment
I. Application of Transformer Oil Filtration Machine
Ultra-high voltage grid is known as the “power highway”, which features enhanced capacity, long distance, and low loss. There are 1,000KV, 800KV, 750KV, and 660KV available. Considering its safety, it is highly suitable for insulating oil in transformers, mutual inductors, and reactors.In order to achieve optimal dielectric strength and insulating performance inside of transformers and circuit breakers, dielectric oils must be kept absolutely clean and dry.
1) Used to treat new oil, running oil, particularly applicable to 220KV–1,000KV power distribution system and the national grid, shortening the oil treating duration during installation and maintenance.
2) It removes acids and impurities quickly and effectively.
3) It removes free and dissolved water.
4) It degasses to remove other dissolved combustible gases such as acetylene, ethylene, ethane, methane, hydrogen, carbon monoxide, and carbon dioxide.
II. Advantages of Transformer Oil Filtration Machine
III. Oil Data Before & After Oil Filtration
PARAMETERS | UNITS | BEFORE OIL FILTRATION | AFTER OIL FILTRATION |
Break Down Voltage with 2.5mm Electrode | kV | 25 | ≥75 |
Moisture Removal | ppm | 50-100 | Up to < 3-5 |
Particle size (Filter Fineness) | Micron | Visible | < 1 |
Gas Content | % Vol./Vol. | <10% | < 0.1% |
IV.Machine Specification of Transformer Oil Filtration Machine
Item | Unit | VFD-30 | VFD-50 | VFD-80 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | |
Flow Rate | L/H | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 18000 | |
Vacuum Range | Mpa | -0.092 ~ -0.099 | |||||||
Working Pressure | Mpa | ≤0.2 | |||||||
Max Vacuum Range | Pa | ≤50 | |||||||
Temperature Range | ℃ | 20 ~ 80 | |||||||
Power Supply | 380V/3P/50Hz(or as needed) | ||||||||
Working Noise | dB(A) | ≤72 | ≤78 | ||||||
Heating Power | Kw | 24 | 30 | 48 | 60 | 90 | 120 | 150 | |
Total Power | Kw | 29 | 36 | 56 | 69 | 100 | 132 | 170 | |
Pipeline Diameter | mm | DN25 | DN32 | DN32 | DN40 | DN40 | DN50 | DN65 | |
Net Weight | Kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 | |
Size | length | mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
width | mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 | |
high | mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 |
V. Available Style of Transformer Oil Filtration Machine

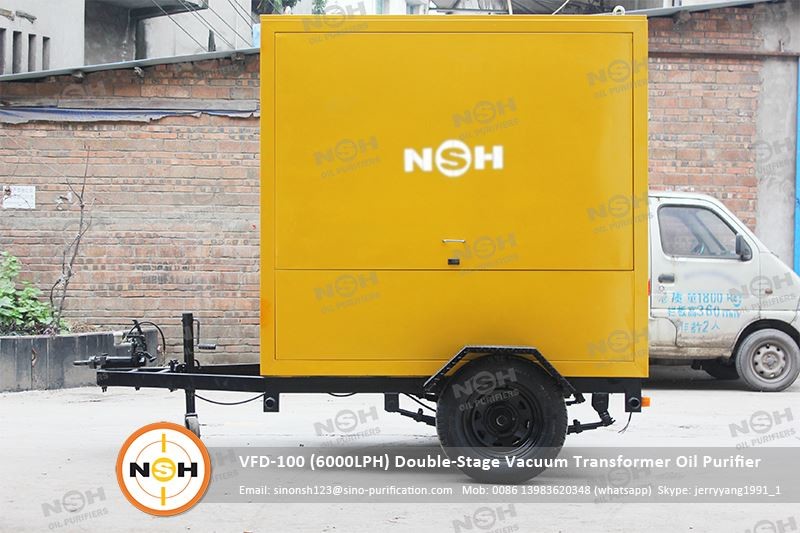

1. Fixing type,mobile type with four wheels and mobile type with trailer.
2. Normal appearance type,shelf-covering type and explosion-proof type.
3. Avaliable in different color.
