Place of Origin: | CHINA |
---|---|
Brand Name: | Sino-NSH |
Certification: | ISO, CE |
Model Number: | VF |
Minimum Order Quantity: | 1 Set |
Packaging Details: | Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks |
Delivery Time: | 10 working days |
Supply Ability: | 50 sets per month |
Function: | Dehydration, Degassing, Remove Impurities | Flow Rate: | 600-18000L/H |
---|---|---|---|
Warranty: | 1 Year | Power Supply: | 380V/3P/50Hz(or As Needed) |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | As Your Requirement |
Highlight: | vacuum oil filter machine,oil purification systems |

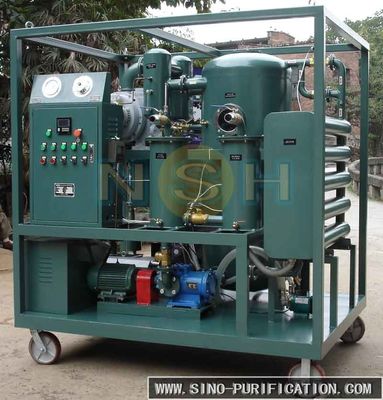

NSH Touch Screen Fully-Automatic Insulating Oil Purifier, Suitable for High Voltage Transformer
I.Vacuum Oil Purifier Application
NSH VFD series is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
II.Vacuum Oil Purifier Description
NSH VF series utilizes coacervation technology,coalescing technology,separating technology and refined purification technology.Comparing to Model VF series,VFD series add ROOTS Vacuum system,second stage of separating system to improve the effect of purification. To remove free,soluble water,carbon,free and dissovled gases and particulate matters from insulating oil effectively and rapidly.
III.Vacuum Oil Purifier Features
1. Effective and efficient Dehydration(Degassing) System.
2. High precision Filtering System.
3. Powerful double stages Vacuum System.
4. Electrical apparatus Controlling System.
5. High quality components.
6. Diverse design in the structures and functions.
IV.Edges of VFD Vacuum Oil Purifier
1. High efficiency and effectiveness.
2. Enhance the value of breakdown voltage greatly.
3. Easy handling and maintenance.
4. Online work.
5. Lower maintenance and replacement expenses.
6. Small size, light weight, low noise
7. Various sizes and configurations (shield) available.
V.Technical Specification of Vacuum Oil Purifier
Technical Specification | |||||||||
Item | Unit | VFD-30 | VFD-50 | VFD-80 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | |
Flow Rate | L/H | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 18000 | |
Vacuum Range | Mpa | -0.092 ~ -0.099 | |||||||
Working Pressure | Mpa | ≤0.2 | |||||||
Max Vacuum Range | Pa | ≤50 | |||||||
Temperature Range | ℃ | 45 ~ 65 | |||||||
Breakdown Voltage | Kv | ≥75 | |||||||
Impurity Size | μm | ≤5 | |||||||
Dielectric Loss | Tg | ≤0.005 | |||||||
Interfacial Tension | mn/m | ≥40 | |||||||
Water Content | PPM | ≤4 | |||||||
Gas Content | % | ≤0.1 | |||||||
Power Supply | 380V/3P/50Hz(or as needed) | ||||||||
Working Noise | dB(A) | ≤72 | ≤78 | ||||||
Heating Power | Kw | 30 | 48 | 72 | 90 | 120 | 180 | 240 | |
Total Power | Kw | 35 | 54 | 77 | 98 | 129 | 189 | 254 | |
Pipeline Diameter | mm | DN25 | DN32 | DN32 | DN40 | DN50 | DN65 | DN65 | |
Net Weight | Kg | 550 | 850 | 1000 | 1100 | 1400 | 1600 | 2200 | |
Size | length | mm | 1500 | 1500 | 1700 | 1900 | 2100 | 2100 | 2600 |
width | mm | 1200 | 1200 | 1500 | 1400 | 1550 | 1550 | 1800 | |
high | mm | 1750 | 1750 | 1850 | 1800 | 1900 | 1900 | 2000 |
VI.Available Style
1.Fixing type,mobile type with four wheels and mobile type with trailer.
2.Normal appearance type,shelf-covering type and explosion-proof type.
3.Avaliable in different color.
VII.Relative Series:
VFD series: Insulation oil purifier System specialize in purifying branded oil, insulation oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
TF series: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
GED series: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
===========================================================================================
