Place of Origin: | China |
---|---|
Brand Name: | Sino-NSH |
Certification: | CE, ISO, CCC, SGS, CNAS, CQC |
Model Number: | TF-200 |
Minimum Order Quantity: | 1 set |
Price: | USD 5000-20000 dollar |
Packaging Details: | Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 50 sets per month |
Power(w): | 103 KW | Condition: | New |
---|---|---|---|
Weight: | 900 Kg | Dimension(l*w*h): | 2000*1350*1660CM |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Flow: | 12000L/H |
Voltage: | 380v/50hz Or As Per User's Option | Working Pressure: | ≤ 0.3Mpha |
Warranty: | 12 Months | Function: | This Units Can Extend Turbine Oil Life By Removing Contaminates From Oil, Such As Water, Gas And Particulates, Improve The Oil Properties. |
Color: | Blue, Customizable | Raw Material: | Carbon Steel |
Working Temperature: | -10~80℃ | Type: | Tubine Oil Filtration |
Material: | Steel | Capacity: | 12000 L/H |
Heating Method: | Electric | Name: | 12000L / H Turbine Oil Purifier Machine Oil Water Separator |

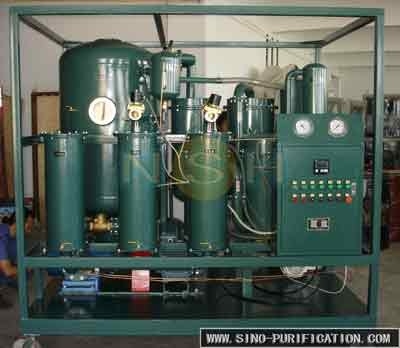

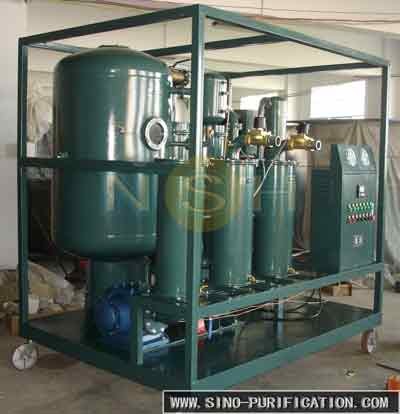

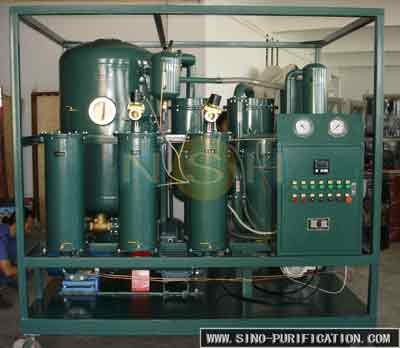

12000L/H Turbine Oil Purifier Machine for Insulating Oil, Vacuum Type
Application
The turbine oil vacuum filtration system is primarily utilized for treating substandard turbine oil, particularly those severely emulsified, effectively and swiftly removing water, gases, and impurities. This process elevates the oil's quality indices to align with new oil standards, thereby ensuring the safe and smooth operation of steam turbine units. Utilizing special polymer materials as its medium, this machine integrates demulsification, dehydration, and impurity removal processes. Combined with vacuum separation technology, it performs demulsification, dehydration, acid removal, and impurity removal online, transforming severely turbid turbine oil into a clear and transparent state. It stands as an exemplary choice for online processing of turbine oil, low-viscosity lubricating oil, and hydraulic oil.
Post-filtration Specifications for Lubricating Oil Vacuum Filter:
Water content after filtration: ≤5ppm
Filtration grade: NAS6
Filtration accuracy: ≤1 micron
Description
An oil filter, alternatively referred to as a clean oil machine, serves a pivotal role in filtering and purifying contaminated oil, thereby restoring or enhancing its inherent properties. These properties encompass oil cleanliness, water content, gas content, acid value, kinematic viscosity, flash point, insulation grade, and color, among others. Specifically, an oil filter is a filtration unit designed to eliminate solid impurities and water from impure oil through processes such as pressure filtration or vacuum evaporation-pressure filtration.
Primarily, oil filters are utilized to enhance the insulation performance of electrical oils and the purity of lubricating oils. This device boasts the capability to rejuvenate degraded oil products without necessitating power shutdowns, oil changes, or equipment shutdowns. It effectively removes acidic components, suspended particles, sludge, water, and other impurities from the oil, ultimately improving the insulation and safety performance of the equipment. Due to its acid removal functionality, oil filters are frequently employed as supplementary purification equipment in conjunction with vacuum oil filters.
Features
Edges
Structure and Appearance
● Conventional configuration is mainly carbon steel, according to customer needs, can also choose to use the tank pipe stainless steel material, beautiful and not corroded, can work for a long time. ● Main power parts, filtration equipment, electrical parts of the conventional configuration for domestic standard configuration, customers can also choose high-quality imported products to improve the performance of equipment.
Working Principle
The design of turbine oil vacuum oil filter is based on the boiling point of water and oil. It is composed of main filter, heating system, fine filter, condenser, vacuum tank, fine filter, water tank, vacuum pump, discharge pump and electric cabinet. The vacuum pump extracts the air in the vacuum tank to form a vacuum, the outer oil acts as atmospheric pressure, through the intake pipe into the main filter to remove the large particles, and then into the heating tank. After heating, such as 40 ~ 75°C, the oil enters the vacuum tank through the solenoid valve, which can automatically control the amount of oil in and out of the vacuum tank balance. The heated oil turns into oil mist into the vacuum tank, and the water in the oil rapidly evaporates into steam sprayers, which are sucked into the condenser of the vacuum pump. The water vapor passes through the condenser back to liquid water and discharge. The gas in the oil is quickly removed by a vacuum pump. After the vacuum tank, the oil goes through a fine filter to separate the particles from the impurities, and then the clean oil is discharged.
Guarantees & documentation
SINO-NSH Warrants the plant supplied under this specification against defects in material and workmanship under normal use and service for a period of sixteen (16) months from date of shipment or twelve (12) months after the start up of the system. SINO-NSH’s obligation under this warranty is limited to repairing or furnishing, without charge F.O.B. point of manufacture, a similar part to replace any part, which was proven to be defective within warranty period. SINO-NSH shall not in any event be held responsible for any indirect or consequential damages. The performance guarantee will be within limitations as detailed in duty & performance paragraph of this specification.
Two(2) copies of operating & maintenance manuals are supplied with each purifier. These systems are designed to operate with the utmost simplicity and is required, please contact SINO-NSH for additional charges.
Technical specifications
Item | Unit | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | |
Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | |
Vacuum Range | MPa | -0.06~~-0.096 | |||||
Working Pressure | MPa | ≤0.3 | |||||
Water Ratio | PPm | ≤ 100 | |||||
Impurity size | µm | ≤ 5 | |||||
Clearness | NAS(1638) | ≤ 6 | |||||
Temperature Range | ℃ | 40—80 | |||||
Demulsifying Value | Μin | < 15 | |||||
Power Supply | V | ~50Hz 380V(or as needed) | |||||
Working Noise | dB | ≤ 70 | ≤ 75 | ||||
Heating Power | Kw | 30 | 36 | 72 | 90 | 120 | |
Total Power | Kw | 33 | 39 | 77 | 98 | 128 | |
Inlet(Outlet)Diameter | Mm | DN25 | DN32 | DN40 | DN50 | DN65 | |
Net Weight | Kg | 420 | 550 | 750 | 850 | 950 | |
Size | length | Mm | 1400 | 1550 | 1700 | 1800 | 1900 |
width | Mm | 1050 | 1100 | 1300 | 1400 | 1500 | |
height | Mm | 1650 | 1700 | 1850 | 1950 | 2050 |
Another types of our oil purifier machines
TF series oil purifier: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series oil purifier: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series oil purifier: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
GED series oil purifier: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
About us:►Sino-NSH is a China based company which engages in researching, developing and manufacturing oil purification systems. It implement products for purification, separation, dehydration and regeneration of industrial lubrication oils in transformer, turbine and other machineries, as well as reclamation all kinds of mineral oils with restoration of color and operational specifications. The products are extensively used in the fields of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway, aviation etc. NSH Oil purification equipment series are extensively used in the fields of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway, aviation etc. which consume lubrication oil. It s the principal products covering more than 100 kinds of products in 7 series and can meet different needs of customers. For special demands of customers, we offer particular solutions. NSH products are not only able to low customers cost and security risk effectively, but also solve the problem of which the waste oil contaminates environment. Nowadays, the company`s sales network covers all the provinces of China and exports to more than ten countries. NSH products are very popular in domestic market and foreign market based on High quality, advanced technology and excellent service. We think that the development of NSH is derived from talent of human,the survival of NSH is based on products quality, the innovation is the power of NSH s success, the management is the source of NSH s achievement. Our vision is to be a first class company in the world, we will work hard to pursue it step by step.
►we practiced in this industry during all these years, and have rich on-site experiences too. Any on-site cases, please contact us for a solution.
►For detailed product specifications, please leave us your email or mobile no. To send you the catalog. Thank you!
