Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | VFD-100 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Product Name: | Double-Stage Vacuum Transformer Oil Purifier | Product Capacity: | 6000L/H |
---|---|---|---|
Product Power: | 96KW | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Color: | Custom |
High Light: | 6000 Liter/Hour Transformer Oil Purification System,96KW transformer oil filtration system,6000L/H transformer oil filtering machine |

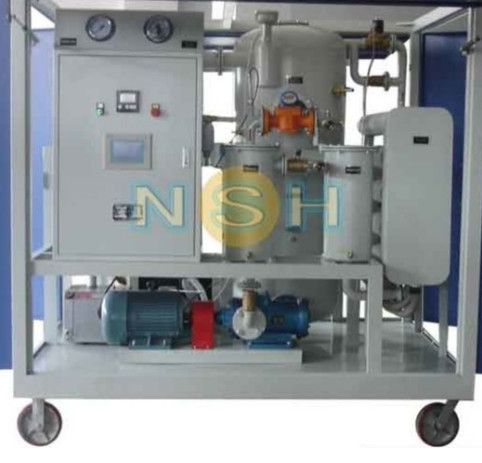

6000 Liter/Hour Intelligent Mobile Type Doule-Stage Vacuum Oil Purifier
working principle
Because the boiling point of water in oil is greatly reduced under high vacuum, a large amount of water can be volatilized without high temperature. The higher the degree of vacuum, the greater the drop in boiling point and the faster the water evaporates. Similarly, the higher the temperature, the faster the water evaporates. Using this principle, the water in the oil can be quickly and effectively removed through heating and high vacuum, and the impurities in the oil can be removed through the filter, finally achieving the effect of purifying the oil quality.
working process
After the oil is inhaled to the heater through the crude filter, the temperature rises, and the initial oil and gas and oil and water are separated in the
first-stage vacuum separation tank, and then the oil and gas are separated completely in the second-stage vacuum separation tank. The water and gas are removed by the booster pump and vacuum pump, and the oil is output by the oil pump and fine filter.
Product features
1. VDF has the characteristics of small size, high efficiency and easy to move, especially suitable for on-site production. And it can dry the moisture of the electric equipment, and it is also convenient for the electric equipment to be vacuum oiled.
2. The structure adopts infrared night position automatic control device, system pressure automatic protection device and high-efficiency degassing element; easy and safe to operate.
Oil Data Before & After Oil Purification Machine
PARAMETERS | UNITS | BEFORE OIL FILTRATION | AFTER OIL FILTRATION |
Break Down Voltage | kV | 25 | ≥75 |
Moisture Removal | ppm | 50-100 | Up to < 3-5 |
Particle size (Filter Fineness) | Micron | Visible | < 1 |
Gas Content | % Vol./Vol. | <10% | < 0.1% |
