Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | LV-150 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Total Power: | 126kW | Capacity: | 9000L/H |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
High Light: | 126kw Dehydration Vacuum Oil Purifier,Enclosed Dehydration Vacuum Oil Purifier,Vacuum Oil Purifier 9000L/H |

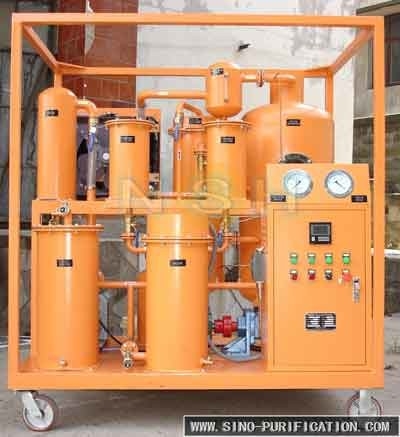

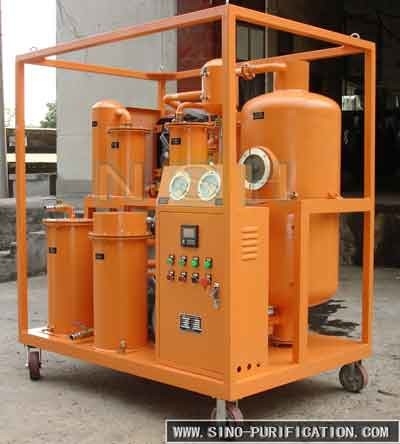

Enclosed 126kw High Performance Dehydration Vacuum Lubrication Oil Purifier
Other Optional Models for Transformer Oil/Insulation Oil:
VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
Where do Contaminants Come from in Oil?
1. External environmental sources
2. Air vent systems that may let in particles and dirt.
3. Internal environmental sources
4. Oxidation that forms acids, resins, etc.
5. Rust and corrosion
6. Leaking coolers
126kw Vacuum Lucrication Oil Purifier Description:
1. Sino-NSH-LV is a dehydration and degassing unit with thermal and vacuum processing. It is a multifuncational purifier which can treat various kinds of lubricant oils.
2. Sino-NSH-LV is mainly used to remove dissolved and fee water,and particulate impurities effectively so as to increase special indexes of lubricant oil. Combining with vacuum system, the multi-stage filtration system adopts a high dehydration efficiency,it has a strong anti-emulsifying capability, which could separate the large amount of water from oil and trace water from oil. The clearness of final oil can be under 6 NAS and water can be under 100PPM after processing with our machine.
3. Sino-NSH-LV maintains an optimized structure and safe controls so as to meet comprehensive requirements of transformer manufacturers and service companies.
126kw Vacuum Lucrication Oil Purifier Technical Parameters:
Parameter | Value | |||||||
LV-10 | LV-20 | LV-30 | LV-50 | LV-100 | LV-150 | LV-200 | ||
Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | |
Heating Power, kW | 15 | 18 | 30 | 45 | 90 | 120 | 180 | |
Total Power, kW | 17 | 21 | 35 | 50 | 96 | 126 | 186 | |
Power supply | Fully Customizable | |||||||
Inlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 | |
Outlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 | |
Dimensions (without trailer) |
length, mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
width, mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 | |
height, mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 | |
Weight(without trailer), kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 | |
Processed Oil Spec | Water Content, ppm | ≤100 | ||||||
Dielectric Strength, Kv | ≤6 | |||||||
Filtration Fineness, um | ≤5( or 1-5 as needed ) |
Tailorded Vacuum Oil Solutions:
Sino-NSH Plants could implement accessible and reliable solutions for unique request and practical usage. It could be special demension request, special structure adoption, unusual using condition demand, or exact performance requirement. Sino-NSH professional technical group and crafted skill man ensure every Sino-NSH system is custom engineering and design that exceed your expectation.
FAQ:
1.1.Are you a trading company or manufacturer?
Manufacturer.
2.Do you accept custom service?
Yes!
3.Do you offer free technical training?
Yes!
4.What's your Delivery Time?
20~30 days.
5.What payment terms do you accept?
T/T,Visa,L/C,West Union,PayPal.
6.Do you accept OEM?
Yes, we can manufacture according to clients requirement.
7. What is your packing?
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks.
PS: we accept customization, welcome to inquiry!!
