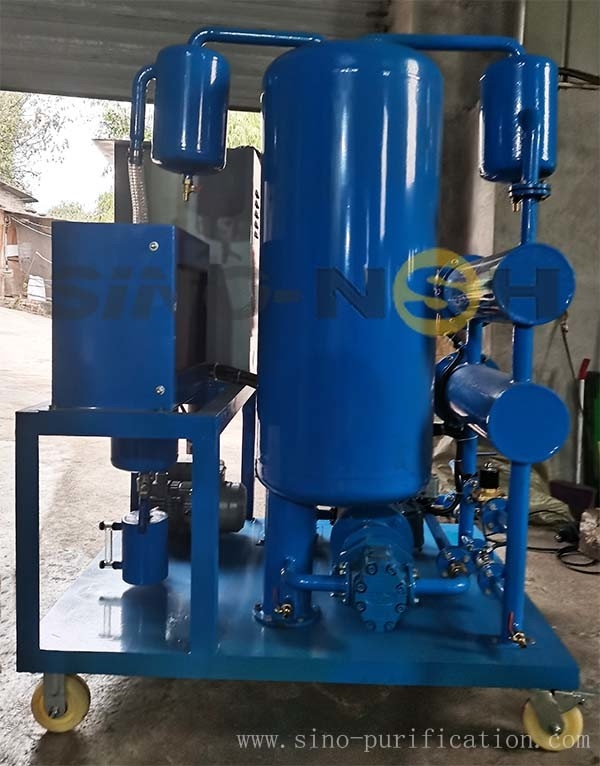

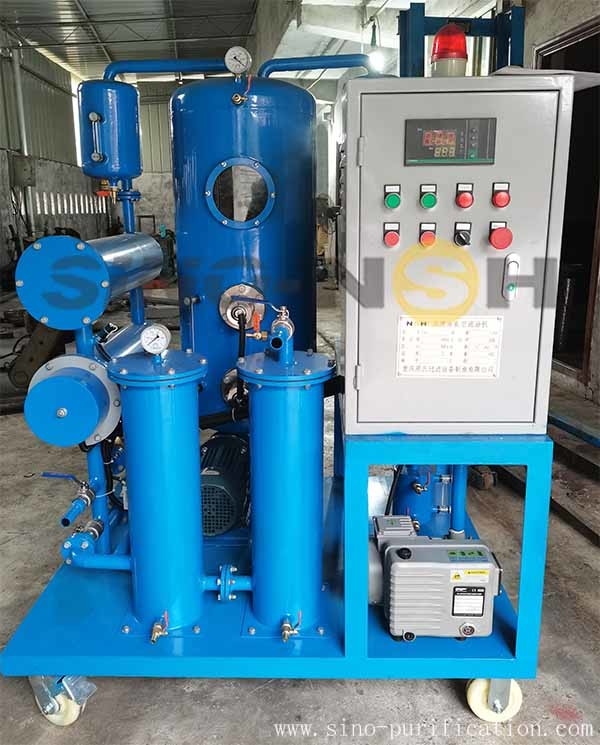

Stainless Steel 6000L/H Automatic Lube Oil Purifier Auto Controlling

6000L/H Automatic Dehydration Multifunctional Vacuum Lubrication Oil Purifier

Features:

1. Liquid level auto-controlling system
2. Auto pressure protection system
3. Steay temperature auto-controlling system.
4. Eletrical auto-protection system to control electric phase, voltage, and overload of pump.

Vacuum Lubrication Oil Purifier Description:

1. Sino-NSH-LV is a dehydration and degassing unit with thermal and vacuum processing. It is a multifuncational purifier which can treat various kinds of lubricant oils.
2. Sino-NSH-LV is mainly used to remove dissolved and fee water,and particulate impurities effectively so as to increase special indexes of lubricant oil. Combining with vacuum system, the multi-stage filtration system adopts a high dehydration efficiency,it has a strong anti-emulsifying capability, which could separate the large amount of water from oil and trace water from oil. The clearness of final oil can be under 6 NAS and water can be under 100PPM after processing with our machine.
3. Sino-NSH-LV maintains an optimized structure and safe controls so as to meet comprehensive requirements of transformer manufacturers and service companies.

Vacuum Lubrication Oil Purifier Technical Parameters:

Corollary Equipment-VR Vacuum Pump Set:

SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Working Principle:

-Vacuum oil purifier is designed according to the boiling point of water and oil. It is composed of vacuum heating tank, fine filter, primary filter, vacuum pump, exhaust oil pump and electrical cabinet.
-Vacuum pump will air out creating vacuum in the vacuum tank, the oil under the action of atmospheric pressure, oil after entrance pipe into the prefilter to remove larger particles, and then enter the heating tank, after heated to a temperature of 40-75 ℃ of oil into the vacuum tank, oil in water evaporate into water vapor rapidly and continuously in the vacuum pump oil water separator, The water vapor in the separator is cooled and reduced to water before being released.
-The oil in the vacuum heating tank is discharged into the fine filter by the exhaust pump through the filter element to filter out the particulate impurities. In order to complete the vacuum filter quickly remove impurities in the oil, water, gas, the whole process, so that the clean oil discharged from the exit of the machine.
