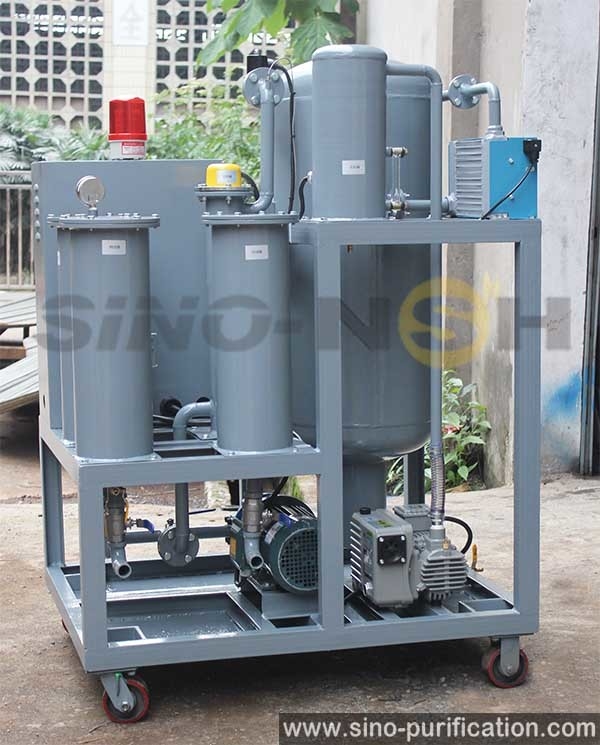

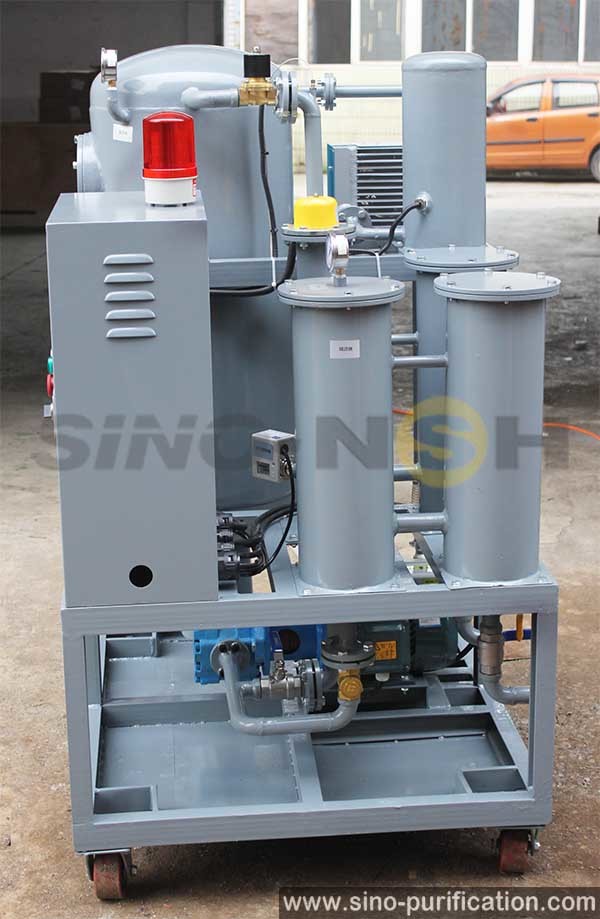

Dehydration Degassing Vacuum Oil Purifier 186kw Closed Type

186kw Closed Type Dehydration Degassing Vacuum Lubrication Oil Purifier

The Reason of Contamination:

1. Transformer oil under the action of thermoelectric field, oil and oxygen contact is gradually oxidized into various oxides and acids, alcohols and other forms of insoluble gum.
2. Due to the leakage of the system, the seal is not strict, the oil is in heat load for a long time, and the open oil storage and other reasons, the water and gas in the air settle in the oil, resulting in water and gas in the oil.

186kw Vacuum Lubrication Oil Purifier Description:

1. Sino-NSH-LV is a dehydration and degassing unit with thermal and vacuum processing. It is a multifuncational purifier which can treat various kinds of lubricant oils.
2. Sino-NSH-LV is mainly used to remove dissolved and fee water,and particulate impurities effectively so as to increase special indexes of lubricant oil. Combining with vacuum system, the multi-stage filtration system adopts a high dehydration efficiency,it has a strong anti-emulsifying capability, which could separate the large amount of water from oil and trace water from oil. The clearness of final oil can be under 6 NAS and water can be under 100PPM after processing with our machine.
3. Sino-NSH-LV maintains an optimized structure and safe controls so as to meet comprehensive requirements of transformer manufacturers and service companies.

186kw Vacuum Lubrication Oil Purifier Technical Parameters:

Optional :

1. Single axle trailer,double axle trailer,trailer with enclosure doors
2. Separated operation room
3. Explosion-proof
4. Full automatic
5. Steel enclosure shield
6. Aluminum enclosure shield
7. Station with forklifts hole type
8. Tailored

What is a lube oil purifier systems?

The Oil Purifier is suitable for treating turbine oil, hydraulic oil, anti-wear oil, bearing oil or high-viscosity lubricating oil, and also for purifying the oil with high water content or turbid emulsification. It can effectively dehydrating and removing impurities from old oil, final oil becomes limpid. Generally used for the purification of hydraulic oil and lubricating oil etc. When the oil contains too much water and impurities, it must be treated again.
A lube oil purifier basically purifies every type of lube oil. This can remove impurities, gas, moisture, acid, hydrocarbons etc., the filtration treatment makes it clean and good for use again. A good lube oil purifier extends the lifetime of the machinery.
It is generally applied in power plants, power stations, all industrial and mining enterprises, etc.
