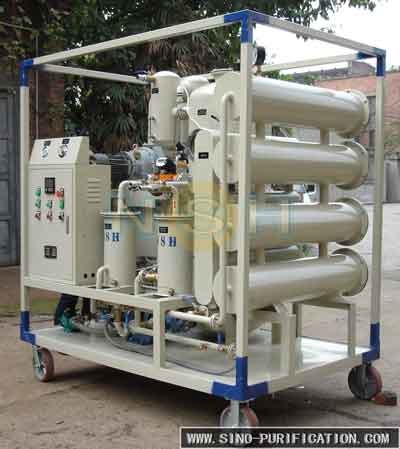

With Wheels Regeneration 29kW Vacuum Transformer Oil Purifier For Power Station

Basic Information

Place of Origin:	China
Brand Name:	SINO-NSH
Certification:	CE, ISO,SGS, SASO, SONCAP
Model Number:	VFD-30

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Wooden Case
Delivery Time:	15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets per month

Get Best Price Contact Now

Power:	29kW	Capacity:	1800L/H
Color:	Custom	Power Supply:	Fully Customizable
Material:	Stainless Steel/Carbon Steel	Warranty:	1years
After Warranty Service::	Video Technical Support, Online Support	Product Name:	Double-Stage Vacuum Transformer Oil Purifier
Highlight:	Tailored Transformer Oil Regeneration Machine , Regeneration Degassing Transformer Oil Purifier , Steel Enclosure Transformer Oil Purifier

With Wheels Regeneration 29kW Vacuum Transformer Oil Purifier For Power Station

Regeneration Transformer Oil Purifier Description:

Regeneration transformer oil purifier is dehydration and degassing unit added with regeneration device. The regeneration device has built-in or individual as options.
Regeneration device adopts a patented proprietary technology. It is widely used partical working fields which has successfully processed transformer oil, silicone oil, turbine oil, fuel oil, and industrial oil. It can restore the oil by removing colloid pitches, sludge, pr sulfur and hydrogen sulfide compounds as needed.

Regeneration Transformer Oil Purifier Features:

-Improves reliability of high voltage transformer;
-Extends transformer service;
-Reduces oil purchase expenses;
-Efficient sorbent Reactivation cycles;
-Simplified operation;
-Low maintenance cost;

With Wheels Regeneration 29kW Vacuum Transformer Oil Purifier For Power Station 0

Double-Stage Vacuum Transformer Oil Purifier Technical Parameters:

Parameters		Value
Parameters		VFD-30	VFD-50	VFD-75	VFD-100	VFD-150	VFD-200	VFD-300
Capacity, liters/hour		1800	3000	4000	6000	9000	12000	18000
Heating Power, kW		24	30	48	60	90	120	150
Total Power, kW		29	36	56	69	100	132	170
Power supply		Fully Customizable
Inlet Diameter, mm		25	32	32	40	40	50	65
Outlet Diameter, mm		25	32	32	40	40	50	65
Dimensions (without trailer)	length, mm	1350	1500	1550	1900	2200	2400	2900
	width, mm	1100	1200	1250	1400	1500	1600	1800
	height, mm	1700	1750	1800	1800	1850	1900	2000
Weight(without trailer), kg		600	800	900	1150	1500	1700	2400
Processed Oil Spec	Water Content, ppm	≤5
	Dielectric Strength, Kv	≥75
	Filtration Fineness, um	≤5( or 1-5 as needed )
	Gas Content, %	≤0.1

Corollary Equipment-VR Vacuum Pump Set

SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Parameter		Value
Parameter		VR-30	VR-70	VR-150	VR-300	VR-600	VR-900
Capacity, liters/hour		100	250	500	1000	2000	3000
Total Power, kW		3	3	5	7	8	13
Power supply		Fully Customizable
Maximum Vacuum Range,Pa		0.06
Outlet Diameter, mm		32	32	40	40	50	65
Dimensions	length, mm	900	550	1000	1200	1500	1950
	width, mm	800	900	800	800	1000	1800
	height, mm	1200	800	1200	1200	1200	1300
Weight(without trailer), kg		450	550	600	900	950	1950

With Wheels Regeneration 29kW Vacuum Transformer Oil Purifier For Power Station 1
