| Place of Origin: | China |
|---|---|
| Brand Name: | SINO-NSH |
| Certification: | CE, ISO,SGS, SASO, SONCAP |
| Model Number: | VFD-200 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiate |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Product Power: | 132kW | Product Capacity: | 12000L/h |
|---|---|---|---|
| Color: | Custom | Power Supply: | Fully Customizable |
| Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
| After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
| High Light: | Tailored Transformer Oil Regeneration Machine,Regeneration Degassing Transformer Oil Purifier,Steel Enclosure Transformer Oil Purifier |
||

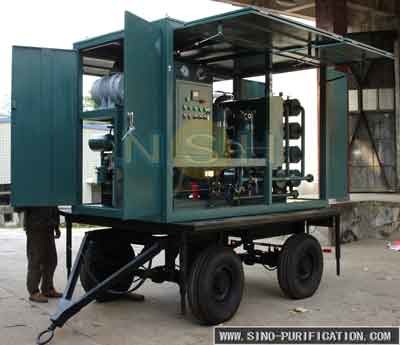

With Foam Level Detector Regeneration Degassing 132kW Transformer Oil Purifier
Regeneration Transformer Oil Purifier Features:
1. High efficiency in water removal and degassing: the patented technology of three-dimensional evaporation degassing and dehydration system, built-in secondary evaporation layer, plus special vacuum packing, increase the oil film contact area, rapid separation of water and gas in the oil, the efficiency is 2 times of similar products.
2. Strong impurity removal ability: high β value precision filter material, multi-level filtration step by step encryption, remove fine particles in the oil. Filter element large volume, large pollution capacity. Long service life, and equipped with filter element pollution automatic detection function.
3. Short oil treatment time: two-stage high vacuum and large pumping speed, can quickly and efficiently remove water vapor in the oil, so that the drying degree of oil, breakdown voltage value, a filtration effect can be greatly improved, shorten the oil treatment period, so as to improve the performance of oil.
Regeneration Transformer Oil Purifier Characteristics:
1. Vacuum oil filter is also called vacuum efficient oil filter, oil filter, vacuum clean oil machine.
2. Using vacuum oil inlet, a tubular rotary injector is installed to reduce the resistance, speed up the rotation, and increase the oil and gas separation effect.
3. Small size, light weight, easy to move, low noise, long continuous working time, stable performance, easy to operate.
Transformer Oil Filtration Systems Technical Parameters:
| Parameters | Value | |||||||
| VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | ||
| Capacity, liters/hour | 1800 | 3000 | 4000 | 6000 | 9000 | 12000 | 18000 | |
| Heating Power, kW | 24 | 30 | 48 | 60 | 90 | 120 | 150 | |
| Total Power, kW | 29 | 36 | 56 | 69 | 100 | 132 | 170 | |
| Power supply | Fully Customizable | |||||||
| Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 | |
| Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 | |
| Dimensions (without trailer) |
length, mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
| width, mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 | |
| height, mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 | |
| Weight(without trailer), kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 | |
| Processed Oil Spec | Water Content, ppm | ≤5 | ||||||
| Dielectric Strength, Kv | ≥75 | |||||||
| Filtration Fineness, um | ≤5( or 1-5 as needed ) | |||||||
| Gas Content, % | ≤0.1 |
|||||||
Other Models Oil Purifier:
| TF Series: |
| TF series oil filter is a filtration and dehydration unit with thermal and vacuum processing,it's ideal for filtration and dehydration of turbine oil, this unit can extend turbine oil life by removing contaminates from oil, such as water, gas and particulates, improve the oil properties. |
| LV Series: |
| LV series oil filter is a dehydration and degassing unit with thermal and vacuum processing, it's a multifunctional purifier which can treat various kinds of lubricant oils. |
| FV Series: |
| LV series oil filter is a stainless steel machine with thermal and vacuum processing, it's mainly used to improve the properties of phosphate ester fire-resistent oil in generator set. |
| GER Series: |
| Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery. |
| GED series: |
| it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality. |
Optional Auxiliary Equipment:
1. Oil tester
2. Water content tester
Accuracy: Aw0-1, measure scope: 0-100ppm, Output: one is ppm, the other is temperature
3.SINO-NSH digital flow meter
Accuracy:1, test range: 300-30000(L/H), application: water,oil,alcohol,liquid, working pressure: 0-25(Mpa), working temperature: 0-120(℃)
4. SINO-NSH particle count meter
5. Foam level detector
When there id foam in the tank and foam reahesa certain level, a singal will be sent to the magnetic valve, the magnetic valve will automatically shut on. The foam will be removed quickly, after removing foa, the magnetic valve will shut off.
6. SINO-NSH-PLC with touch screen and data monitor
Pre-set programmable logical control. Touch screen is installed on the control cabinet and programmed to provide a simplified flow diagram showing all maior components. All operating controls shall be located on th eflow diagram, and maior function are controlled and adjusted by the touch of screen. It allows maximum real-time feedback of collecting data and value on the screen(function customizable).
7.SINO-NSH dissolved gas meter
8. SINO-NSH digital dielectic dissipation factor tester
