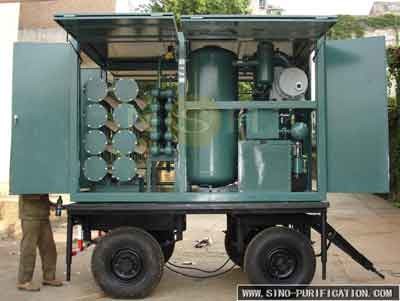

Tailored Regeneration 170kW Vacuum Transformer Oil Purifier With Oil Tester

Tailored Regeneration 170kW Vacuum Transformer Oil Purifier With Oil Tester
Tailored Regeneration 170kW Vacuum Transformer Oil Purifier With Oil Tester Tailored Regeneration 170kW Vacuum Transformer Oil Purifier With Oil Tester Tailored Regeneration 170kW Vacuum Transformer Oil Purifier With Oil Tester
Basic Information
Place of Origin: China
Brand Name: SINO-NSH
Certification: CE, ISO,SGS, SASO, SONCAP
Model Number: VFD-300
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now
Product Power: 170kW Product Capacity: 18000L/h
Color: Custom Power Supply: Fully Customizable
Material: Stainless Steel/Carbon Steel Warranty: 1years
After Warranty Service:: Video Technical Support, Online Support Product Name: Double-Stage Vacuum Transformer Oil Purifier
Highlight:

Tailored Transformer Oil Regeneration Machine

,

Regeneration Degassing Transformer Oil Purifier

,

Steel Enclosure Transformer Oil Purifier

Tailored Regeneration 170kW Vacuum Transformer Oil Purifier With Oil Tester





Regeneration Transformer Oil Purifier Description:



Regeneration transformer oil purifier is dehydration and degassing unit added with regeneration device. The regeneration device has built-in or individual as options.
Regeneration device adopts a patented proprietary technology. It is widely used partical working fields which has successfully processed transformer oil, silicone oil, turbine oil, fuel oil, and industrial oil. It can restore the oil by removing colloid pitches, sludge, pr sulfur and hydrogen sulfide compounds as needed.





Where do Contaminants Come from in Oil?


1. External environmental sources
2. Air vent systems that may let in particles and dirt.
3. Internal environmental sources
4. Oxidation that forms acids, resins, etc.
5. Rust and corrosion
6. Leaking coolers





Regeneration Transformer Oil Purifier Features:



-Improves reliability of high voltage transformer;
-Extends transformer service;
-Reduces oil purchase expenses;
-Efficient sorbent Reactivation cycles;
-Simplified operation;
-Low maintenance cost;







Corollary Equipment-VR Vacuum Pump Set:


SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Parameter Value
VR-30 VR-70 VR-150 VR-300 VR-600 VR-900
Capacity, liters/hour 100 250 500 1000 2000 3000
Total Power, kW 3 3 5 7 8 13
Power supply Fully Customizable
Maximum Vacuum Range,Pa 0.06
Outlet Diameter, mm 32 32 40 40 50 65
Dimensions length, mm 900 550 1000 1200 1500 1950
width, mm 800 900 800 800 1000 1800
height, mm 1200 800 1200 1200 1200 1300
Weight(without trailer), kg 450 550 600 900 950 1950






Optional Auxiliary Equipment:


1. Breakdown voltage tester(oil tester)
2. SINO-NSH digital Hygrometer(weater content tester)
3.SINO-NSH digital flow meter
4. SINO-NSH particle count meter
5. Foam level detector
6. SINO-NSH-PLC with touch screen and data monitor
7.SINO-NSH dissolved gas meter
8. SINO-NSH digital dielectic dissipation factor tester





Order Process:


Choose type→Sign the contract→Customization→The test→Delivery→Collect the goods





Order Tips:


If you are not sure about the filter needed exactly,please advise what types of the oil adn give the oil specification.We help you choose certain suitable oil purifier.



Tailored Regeneration 170kW Vacuum Transformer Oil Purifier With Oil Tester 00W 18000L/H

Vacuum Insulation Oil P

urifier Descripti

Double-Stage Vacuum Transformer oil Purifier Technical Parameters:



Parameters Value
VFD-30 VFD-50 VFD-75 VFD-100 VFD-150 VFD-200 VFD-300
Processed Oil Spec Water Content, ppm ≤5
Dielectric Strength,
Kv		 ≥75
Filtration Fineness,
um		 ≤5( or 1-5 as needed )
Gas Content,
%		 ≤0.1





Other Models Oil Purifier:



TF Series:
TF series oil filter is a filtration and dehydration unit with thermal and vacuum processing,it's ideal for filtration and dehydration of turbine oil, this unit can extend turbine oil life by removing contaminates from oil, such as water, gas and particulates, improve the oil properties.
LV Series:
LV series oil filter is a dehydration and degassing unit with thermal and vacuum processing, it's a multifunctional purifier which can treat various kinds of lubricant oils.
FV Series:
LV series oil filter is a stainless steel machine with thermal and vacuum processing, it's mainly used to improve the properties of phosphate ester fire-resistent oil in generator set.
GER Series:
Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
GED series:
it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.





Package & Delivery:



Tailored Regeneration 170kW Vacuum Transformer Oil Purifier With Oil Tester 1
