Place of Origin: | China |
---|---|
Brand Name: | Sino-NSH |
Certification: | ISO, CE |
Model Number: | SINO-NSH-VFD |
Minimum Order Quantity: | 1 |
Packaging Details: | Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks |
Delivery Time: | 12 working days |
Payment Terms: | T/T |
Supply Ability: | 100/month |
Function: | Dehydration, Degassing, Remove Impurities | Original: | China |
---|---|---|---|
Flow Rate: | 600-18000L/H | Power Supply: | 380V/3P/50Hz(or As Needed) |
Color: | As Your Requirement | Product Name: | Transformer Oil Purifier |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ||
Highlight: | Dehydrated Lubricating Oil Purifier,Turbine Oil Demulsifier,Degassing Degassing |

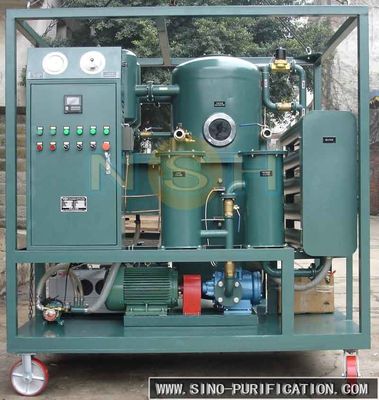

Dehydrated Transformer Vacuum Oil Purifier Device Turbine Oil Demulsifier Purifier
Sino-NSH-VFD is a dehydration and degassing unit with thermal and double-stage vacuum processing.
Sino-NSH-VFD is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impurities effectively so as to increase special indexes of insulation oil.
Four main security and protecting systems:
1, Liquid level auto-controlling system
2, Auto pressure protection system
3, Steady temperature auto-controlling system
4, Electrical auto-protection system to control electric phases,voltage and overload of pump
Technical specification
Parameter | Value | |||||||
VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | ||
Capacity,liters/hours | 1800 | 3000 | 4000 | 6000 | 9000 | 12000 | 18000 | |
Heating Power,kW | 24 | 30 | 48 | 60 | 90 | 120 | 150 | |
Total Power,kW | 29 | 36 | 56 | 69 | 100 | 132 | 170 | |
Power supply | Fully customizable | |||||||
Inlet Diameter,mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 | |
Outlet Diameter,mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 | |
Dimensions (without trailer) |
Length,mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
Width,mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 | |
Height,mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 | |
Weight(without trailer),kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 | |
Processed Oil Spec | Water content,ppm | ≤ 5 | ||||||
Dielectric strength,kv | ≥75 | |||||||
Filtration fineness,um | ≤ 5(or 1-5 as needed) | |||||||
Gas content,% | ≤ 0.1 |
Available style:
1.Fixing type,mobile type with four wheels and mobile type with trailer.
2.Normal appearance type,shelf-covering type and explosion-proof type.
3.Avaliable in different color.
About Sino-NSH:
Sino-NSH Oil Purifier Manufacture Co.,Ltd is a leading manufacture of oil purification and regeneration systems worldwide.
Since 1992,Sino-NSH has been researching, developing and manufacturing oil purification and recycling systems. Based on the profession and achievements in this field, NSH passed the approval of the ISO9001:2015 quality system, Environmental Management System as per GB/T 24001-2016/ISO 14001:2015, and was awarded to Chinese high-tech enterprise etc. NSH professional technical team successfully developed hundreds of practical patents and obtained certification for thr products.
NSH products are extensively used in the field of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway, aviation etc. to meet different demands of customers. And tailored solutions are provided for special applications.
Service & support: NSH regards technical innovation and satifying service as its philosophy. Taking advantage of human resource capital and absorbing domestic and foreign advanced purification technology, NSH is committed in making high quality purification equipment and become the main manufacture base of purification machine in China.
