18000LPH Trailer Mounted Double Stage Vacuum Dehydration Transformer Oil Purifier and Filtration Machine

Basic Information

Place of Origin:	China
Brand Name:	Sino-NSH
Certification:	CE ISO
Model Number:	VFD

Minimum Order Quantity:	one set
Packaging Details:	Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks
Delivery Time:	10 working days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50 sets per month

Get Best Price Contact Now

Function:	Dehydration, Degassing, Remove Impurities	Material:	Stainless Steel
Color:	Red	Voltage:	380V,220~415V,380v/50hz,220V,380v/50hz And As Your Option
Condition:	New	Weight:	685-1900KG
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support	Flow:	1800 L/h-18000L/h
Certification:	CE ISO,ISO9001,SGS,CE/ ISO,BV	Working Pressure:	Lower Than 0.5 Mpa
Usage:	Transformer Oil,Lubricant Oil,Insulation Oil,Industrial Oil Filtrator	Warranty:	1 Year
Function:	Transformer Oil Purification,Waste Oil Recycling,Degases And Removes The Impurities,Degassing,Dewaters	Type:	Vacuum Oil Purifier,Double Stage Vacuum Insulating Oil Regeneration System,High Eficiency,Portable Filtration
Name:	Transformer Oil Centrifugal Purifier Device Machine,Vacuum Oil Filtration Machine,Waste Lube Oil To Diesel Oil Transformer Oil Purifier,transformer Oil Purification Plant Vacuum Insulation Oil Purifier	Capacity:	As User Need
Highlight:	transformer oil purification machine , transformer oil filtration plant

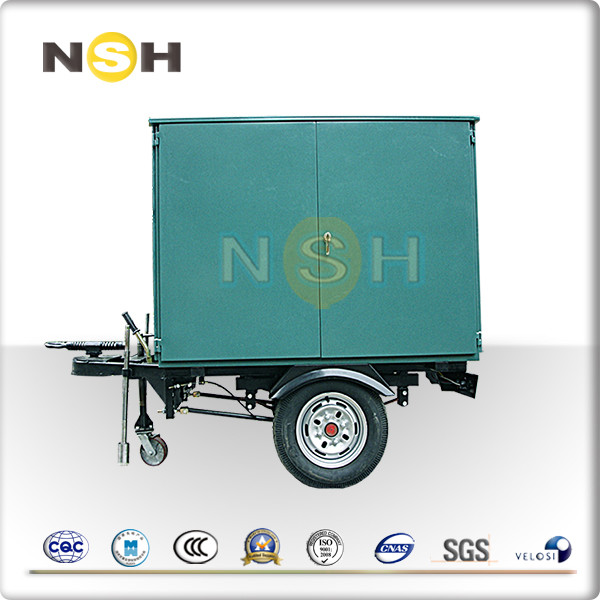

18000LPH Trailer Mounted Enclosed Transformer Oil Purifier Vacuum Dehydration

18000LPH Trailer Mounted Enclosed Double Stage Vacuum Dehydration Transformer Oil Purifier

Transformer Oil Centrifuge Machine Application

NSH VFD series is designed to enhance insulation oil properties by effectively removing trace water, gases, and particulate matter from insulating oil. This system is ideal for purifying branded oils and insulating oils used in high voltage and super high voltage transformers.

Product Description

VF series - Single-Stage Vacuum Insulation Oil Filtration Machine
VFD series - Double-Stage Vacuum Insulation Oil Filtration Machine
VFD-R series - Double-Stage Vacuum Insulation Oil Regeneration Filtration Machine

NSH VFD series employs advanced coacervation, coalescing, separating, and refined purification technologies. Compared to VF series models, it incorporates ROOTS Vacuum system and a second stage separating system to significantly improve purification effectiveness. This system efficiently removes free and soluble water, carbon, free and dissolved gases, and particulate matter from insulating oil.

For aging and deteriorated transformer oil treatment, we recommend the VFD-R series for regeneration purposes.

Key Features

Low moisture content at plant outlet
Low gas/air content at plant outlet
Elimination of residual gas from insulation
Effective drying of transformer insulation
Easy and failsafe operation
On-line measuring and recording of process parameters
Flexibility in application (various oil types and volumes)

Available Configurations

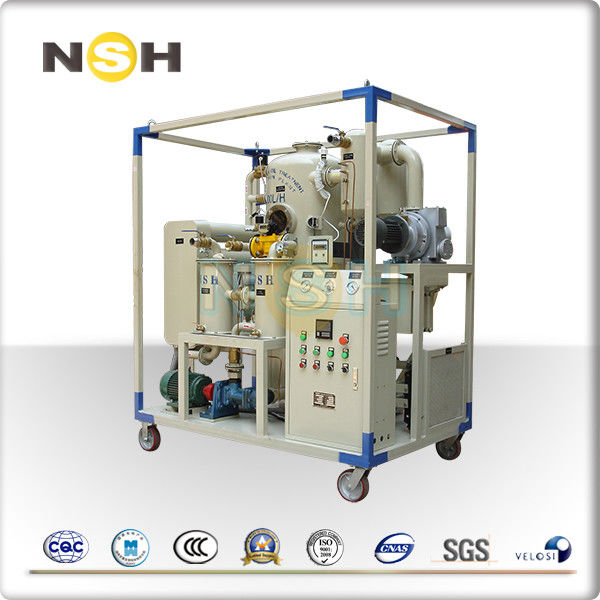

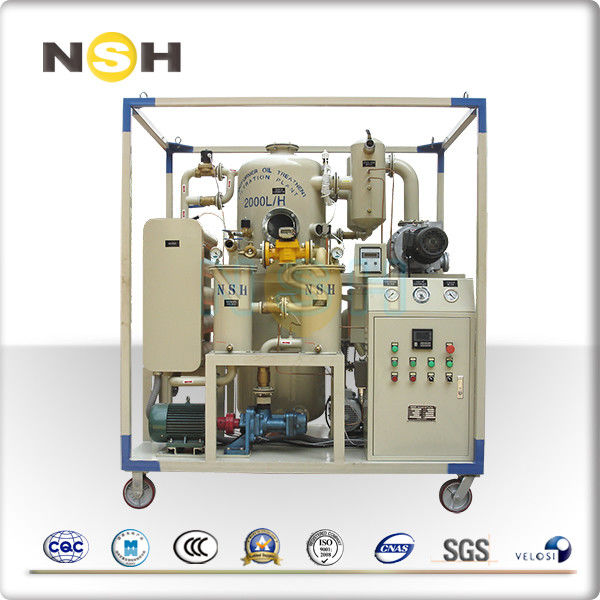

Fixing type, mobile type with four wheels, and mobile type with trailer
Normal appearance type, shelf-covering type, and explosion-proof type
Available in different colors

Technical Specifications

Item	Unit	VFD-30	VFD-50	VFD-80	VFD-100	VFD-150	VFD-200	VFD-300
Flow Rate	L/H	1800	3000	4800	6000	9000	12000	18000
Vacuum Range	Mpa	-0.092 ～ -0.099
Working Pressure	Mpa	≤0.2
Max Vacuum Range	Pa	≤50
Temperature Range	℃	45 ～ 65
Breakdown Voltage	Kv	≥75
Impurity Size	μm	≤5
Dielectric Loss	Tg	≤0.005
Interfacial Tension	mn/m	≥40
Water Content	PPM	≤4
Gas Content	%	≤0.1
Power Supply		380V/3P/50Hz (or as needed)
Working Noise	dB(A)	≤72	≤78	≤78	≤78	≤78	≤78	≤78
Heating Power	Kw	30	48	72	90	120	180	240
Total Power	Kw	35	54	77	98	129	189	254
Pipeline Diameter	mm	DN25	DN32	DN32	DN40	DN50	DN65	DN65
Net Weight	Kg	550	850	1000	1100	1400	1600	2200
Size - Length	mm	1500	1500	1700	1900	2100	2100	2600
Size - Width	mm	1200	1200	1500	1400	1550	1550	1800
Size - Height	mm	1750	1750	1850	1800	1900	1900	2000
