IEC156 ASTM Transformer Oil Testing Equipment Insulating Breakdown Voltage Tester

IEC156 ASTM Transformer Oil Testing Equipment Insulating Breakdown Voltage Tester
IEC156 ASTM Transformer Oil Testing Equipment Insulating Breakdown Voltage Tester IEC156 ASTM Transformer Oil Testing Equipment Insulating Breakdown Voltage Tester IEC156 ASTM Transformer Oil Testing Equipment Insulating Breakdown Voltage Tester IEC156 ASTM Transformer Oil Testing Equipment Insulating Breakdown Voltage Tester IEC156 ASTM Transformer Oil Testing Equipment Insulating Breakdown Voltage Tester IEC156 ASTM Transformer Oil Testing Equipment Insulating Breakdown Voltage Tester IEC156 ASTM Transformer Oil Testing Equipment Insulating Breakdown Voltage Tester IEC156 ASTM Transformer Oil Testing Equipment Insulating Breakdown Voltage Tester IEC156 ASTM Transformer Oil Testing Equipment Insulating Breakdown Voltage Tester
Basic Information
Place of Origin: China
Brand Name: Sino-NSH
Certification: CE,ISO
Model Number: BDV Tester
Minimum Order Quantity: 1 set
Packaging Details: Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks
Delivery Time: 15 working days
Supply Ability: 30 sets per month
Get Best Price Contact Now
Application: Transformer Oil BDV Tester Function: Test The Breakdown Voltage Of Transformer Oil
Portable: Packaged In Case, Easy To Bring Print: Test Results Can Be Printed Out
Product Name: Transformer Oil Testing Equipment Feature: Durable
Highlight:

oil testing equipment

,

oil breakdown voltage tester

NSH Insulating Oil Dielectric Strength Tester

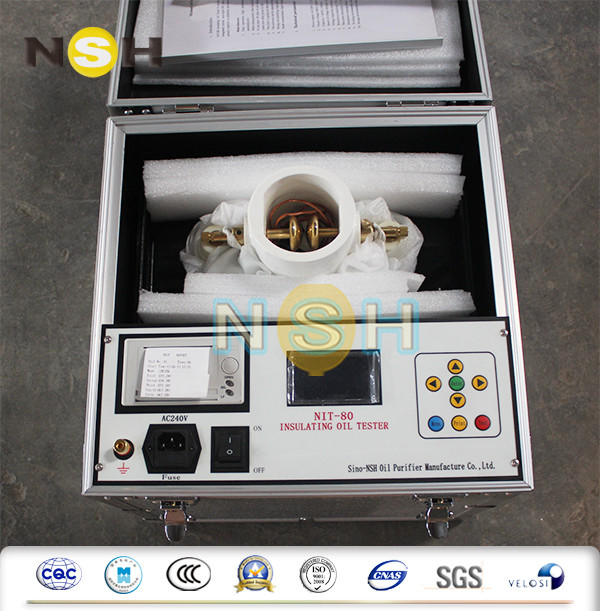

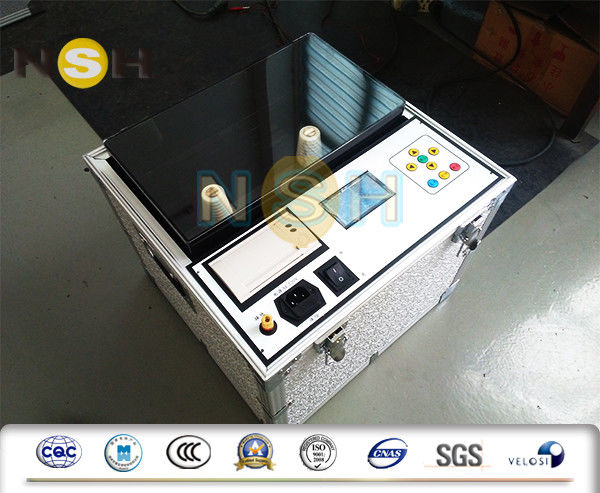

I. Description of BDV Tester



NSH NIT series Transformer Oil Breakdown Voltage Tester is fully automatic micro controller based system, completely self-contained, compact and portable giving smooth variable test voltage from 0 to 100 kV for testing the dielectric strength of transformer oil in accordance with all international standards like ASTM D1816/IEC156/IS6792/ ASTM D877/ UNE 21 specifications.





II. Features of BDV Tester

  1.  Easy operation, high autoimmunization (only press button once and all work done automatically)
  2.  Menu management, data input simple and convenient.
  3.  It can store 99 data of oil sampling tests, the test data can be reviewed and printed in 100 years even after power is off.
  4.  The clock in going on after power off.
  5.  The software can be upgrade through RS232 terminal. Test data can be uploaded to PC by RS232 port.
  6.  Strong anti-jamming, high precision testing.
  7.  Small measurement, light weight, and convenient for outdoor operation.



III. Technical Specification of BDV Tester





Item NSH SPECIFICATION
Manufacturer Sino-NSH
Country of Origin China
Model NIT-80
Power supply AC220V ±10%, 50Hz or as needed
Output voltage 60kV, 80kV, 100kV
Capacity 1.6kVA, 2.0kVA
Rate of voltage rise adjustable 0.5kV/s, 1kV/s, 2 kV/s, 3kV/s, 5kV/s
Test standards

“IEC156/IS6792 etc.” “Custom Test”, “ASTM D877”, “ASTM D1816”, “Manual”, “5 minutes test”, “Proof A”, “Proof B” and “UNE21”

(Proof A: Voltage rises at 2kV/s to set value, stays for 60 sec unless breakdown occurs earlier and voltage falls.

Proof B: As above and continues to breakdown or maximum value of test set.)


Voltage inspection accuracy <2%
Breakdown sensitivity <0.1kV
Waveform distortion ≤1%
Breakdown response time ≤10ms
Working environment temperature: 0℃~40℃, humidity: max relative humidity 85%
Storage environment temperature: －20℃ ~ 60℃, humidity: max relative humidity 75%





V. Available Style


1. Fixing type or mobile type with four wheels.
2. Normal appearance type,shelf-covering type.
3. Avaliable in different color.


VII. Relative Series:



VFD series: Insulation oil purifier System specialize in purifying branded oil, insulation oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
TF series: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.

GED series: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
