Place of Origin: | CHINA |
---|---|
Brand Name: | Sino-NSH Oil Purifier Manufacture Co.,Ltd |
Certification: | ISO, CE |
Model Number: | PF |
Minimum Order Quantity: | 1 Set |
Packaging Details: | Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks |
Delivery Time: | 10 working days |
Supply Ability: | 50 sets per month |
Function: | Remove Impurities | Flow Rate: | 600-18000L/H |
---|---|---|---|
Warranty: | 1 Year | Power Supply: | 380V/3P/50Hz(or As Needed) |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | As Your Requirement |
Highlight: | lube oil purification system,lube oil purification machine |

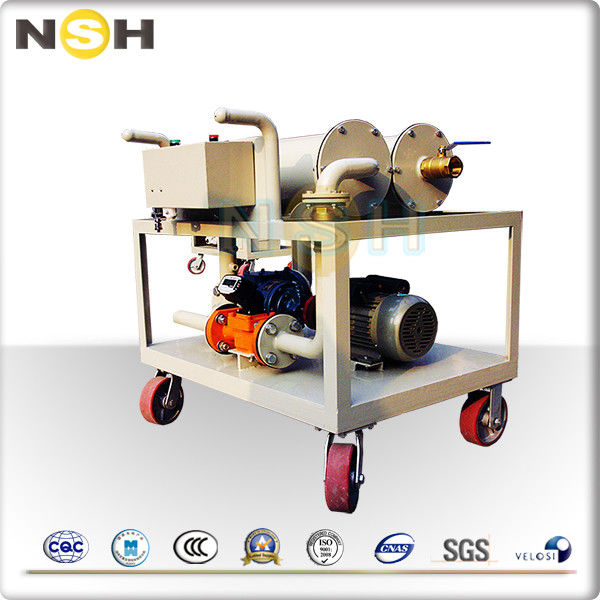

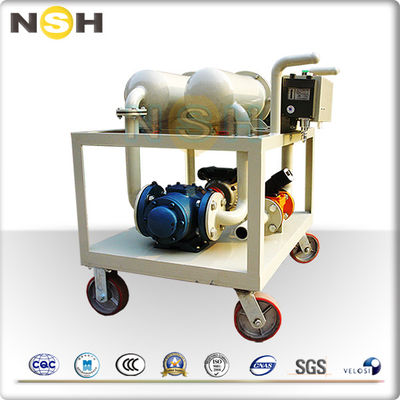

NSH PF series High Precision Purifier
I. Application of High Precision Purifier
NSH PF series multi-stages high precision oil purifier can purify the oil by removing the negative mechanical impurities.It is widely used in the fields of power station,petrochemical industry,metallurgy,mechanical engineering etc. for oil filling,oil pumping as well as high precision purifying and pipe cleanng.
II. Features of High Precision Purifier
III. Available Style
1. Fixing type,mobile type with four wheels and mobile type with trailer.
2. Normal appearance type,shelf-covering type and explosion-proof type.
3. Avaliable in different color.
IV. Technical Specification of High Precision Purifier
Item | Unit | PF-30 | PF-50 | PF-80 | PF-100 | PF-125 | PF-150 | |
Flow Rate | L/H | 1800 | 3000 | 4800 | 6000 | 7500 | 9000 | |
Working Pressure | Mpa | ≤0.4 | ||||||
Clearness | NAS | ≤6 | ||||||
Height | m | ≥15 | ||||||
Power Supply | 380V/50Hz(or as needed) | |||||||
Working Noise | dB(A) | ≤60 | ≤65 | |||||
Total Power | Kw | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | |
Pipeline Diameter | mm | DN25 | DN32 | DN32 | DN40 | DN40 | DN50 | |
Net Weight | Kg | 100 | 115 | 130 | 140 | 165 | 180 |
VI. Relative Series:
VFD series: Insulation oil purifier System specialize in purifying branded oil, insulation oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
TF series: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
GED series: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
