Place of Origin: | China,Chongqing |
---|---|
Brand Name: | SINO-NSH |
Certification: | ISO, CE |
Model Number: | VFD-150 |
Minimum Order Quantity: | 1 set |
Price: | Negotiate |
Packaging Details: | wooden case |
Delivery Time: | 15 working days |
Payment Terms: | T/T, L/C, D/A, D/P, , Western Union, MoneyGram |
Supply Ability: | 50 sets per month |
Product Name: | Transformer Oil Purifier | Power Supply: | 380V/3P/50Hz(or As Needed) |
---|---|---|---|
Color: | As Your Requirement | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Function: | Dehydration, Degassing, Remove Impurities | Material: | Carbon Steel |
Condition: | New | Warranty: | 1 Year |
High Light: | Transformer Oil Purifier Dehydration Degassing,9000L/H Transformer Oil Purifier,High Efficiency 380V Transformer Oil Purifier |

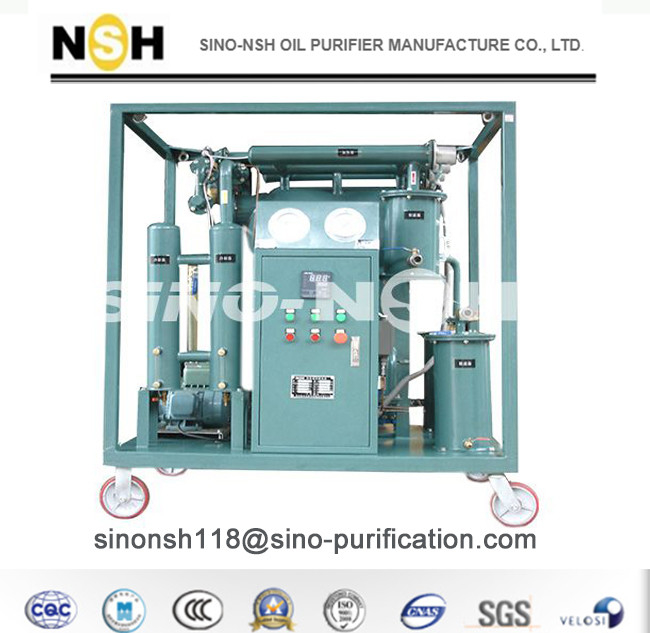

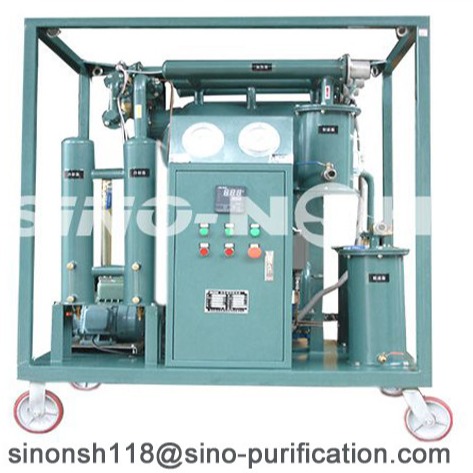

9000Lit/H High Efficiency Vacuum Separation Dehydration Degassing Transformer Oil Purifier
Product Introduction:
VFD series insulating oil two-stage vacuum oil filter integrates vacuum flash drying technology, COALescence separation technology and "step by step dense" filtration technology. This series of two-stage vacuum system can more efficiently remove water, impurities, hydrocarbons and other harmful gases in the oil, improve the flash point and pressure strength of insulating oil, and use in parallel with the waste oil regeneration device can accelerate acid removal, decolorization, reduce dielectric loss, acid value, so as to further improve the insulation strength of oil. In addition, it can also be configured as a three-stage high vacuum oil filter for users to obtain a higher vacuum degree, to meet your higher oil processing requirements.
Technical Characteristics:
The machine adopts multistage cartridge purifier, which has strong ability to purifier impurities. Coarse purifier selection of large flow cleaning purifier element, high filtration efficiency, can remove a large number of impurities in the oil; Precision filter element, using "step by step" technology, high filtering precision, large scale capacity, high strength, long life, can remove fine particles in oil; The machine is designed with automatic backwashing function, which not only improves the continuous working time of the equipment, but also ensures the service life of the purifier element.
Product Parameters:
Paramater |
Value | |||||||
VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | ||
Capacity,liters/hours | 1800 | 3000 | 4000 | 6000 | 9000 | 12000 | 18000 | |
Heating Power,kW | 24 | 30 | 48 | 60 | 90 | 120 | 150 | |
Total Power,kW | 29 | 36 | 56 | 69 | 100 | 132 | 170 | |
Power supply | Fully customizable | |||||||
Inlet Diameter,mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 | |
Outlet Diameter,mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 | |
Dimensions (without trailer) |
Length,mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
Width,mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 | |
Height,mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 | |
Weight(without trailer),kg | 600 | 800 | 900 | 1500 | 1500 | 1700 | 2400 | |
Processed Oil Spec | Water content,ppm | ≤ 5 | ||||||
Dielectric strength,kv | ≥75 | |||||||
Filtration fineness,um | ≤ 5(or 1-5 as needed) | |||||||
Gas content,% | ≤ 0.1 |
