Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | GER-4 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Total Power: | 203kW | Function: | Dehydration Degassing Remove Impurities |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Vacuum Engine Oil Regeneration Purifier |
High Light: | 203kw Vacuum Oil Filter Machine,Dehydration Degassing Oil Filter Machine,72kw Degassing Oil Filter Machine |

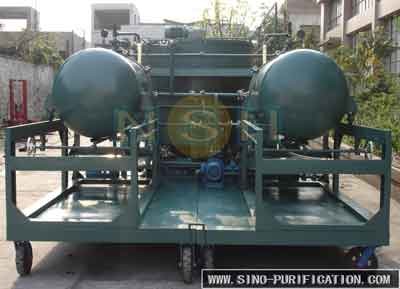

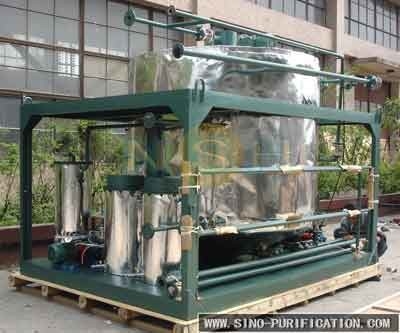

For Gear Oil 203kw Remove Impurities Vacuum Engine Oil Regeneration Purifier
Advantages:
1. High water and gas removal efficiency: the technology adopted is efficient THREE-DIMENSIONAL flash technology.
2. High impurity removal ability: high β value precision filter material, multi-level filtration step by step encryption, remove fine particles in the oil. Filter element large volume, large pollution capacity.
3. Short oil treatment time: two-stage high vacuum and large pumping speed, can quickly remove water vapor in the oil, so that the drying degree of oil, breakdown voltage value, a filtration effect can be greatly improved, shorten the oil treatment period, so as to improve the performance of oil.
4. Good comprehensive performance: the machine has the advantages of low noise, simple operation, long maintenance interval, low energy consumption, small operation cost, high oil filter efficiency.
Vacuum Engine Oil Regeneration Purifier Technical Parameters:
Parameter | Value | |||||
GER-1 | GER-2 | GER-3 | GER-4 | GER-5 | ||
Capacity, liters/hour | 2000 | 1200 | 1800 | 3000 | 6000 | |
Heating Power, kW | 72 | 18 | 30 | 45 | 90 | |
Total Power, kW | 81 | 21 | 35 | 50 | 96 | |
Power supply | Fully Customizable | |||||
Outlet Diameter/Inlet Diameter, mm | 40 | 40 | 40 | 40 | 40 | |
Recovery Rate, % | 70~90 | |||||
Dimensions | Reaction Sytem, mm | 3500x1900x2100~5600x2100x2300 | ||||
Filtration Sytem, mm | 2*2800x1400x2000~2*3200x1600x2100 | |||||
Exhaust Gas Processing, mm | 950x2000x3300 | |||||
Weight(without trailer), kg | 2500 | 3500 | 4500 | 5500 | 6000 |
Optional:
1. Single axle trailer,double axle trailer,trailer with enclosure doors
2. Separated operation room
3. Explosion-proof
4. Full automatic
5. Steel enclosure shield
6. Aluminum enclosure shield
7. Station with forklifts hole type
8. Tailored
What is Vacuum Engine Oil Regeneration Purifier?
Oil filter is a filter device which uses gravity centrifugal pressure vacuum distillation mass transfer and other technical methods to remove the oxidation by-products and moisture of mechanical impurities in impure oil. Oil filter is mainly used to improve the cleanliness of mechanical and electrical oil, so that it can play the best performance and extend the service life of equipment.
Vacuum Engine Oil Regeneration Purifier Order Tips:
If you are not sure about the filter needed exactly,please advise what types of the oil adn give the oil specification.We help you choose certain suitable oil purifier.
Vacuum Engine Oil Regeneration Purifier Features:
1. Liquid level auto-controlling system.
2. Auto pressure protection system.
3. Steay temperature auto-controlling system.
4. Eletrical auto-protection system to control electric phase, voltage, and overload of pump.
PS: we accept customization, welcome to inquiry!!!
