Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | LV-50 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Total Power: | 50kW | Capacity: | 3000L/H |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
High Light: | 3000L/H Vacuum Lube Oil Purifier,50kw Dehydration Vacuum Lube Oil Purifier,SASO Vacuum Lube Oil Purifier |

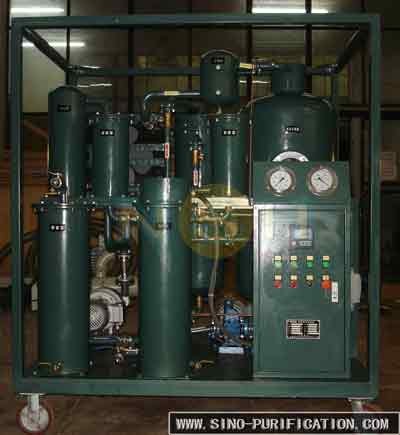

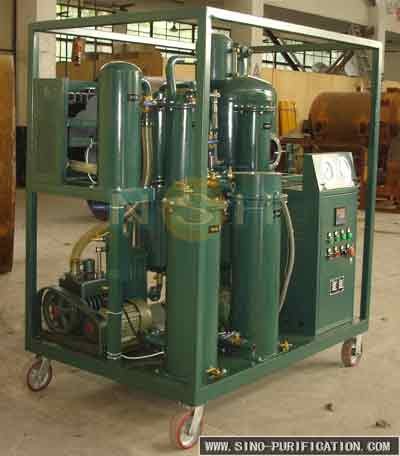

High Voltage Easy Operation 50kw Dehydration Vacuum Lubrication Oil Purifier
Vacuum Lubrication Oil Purifier Characteristics:
1. Vacuum oil filter is also called vacuum efficient oil filter, oil filter, vacuum clean oil machine.
2. Using vacuum oil inlet, a tubular rotary injector is installed to reduce the resistance, speed up the rotation, and increase the oil and gas separation effect.
3. Small size, light weight, easy to move, low noise, long continuous working time, stable performance, easy to operate.
Other Optional Models for Transformer Oil/Insulation Oil:
VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
The Reason of Contamination:
1. Transformer oil under the action of thermoelectric field, oil and oxygen contact is gradually oxidized into various oxides and acids, alcohols and other forms of insoluble gum.
2. Due to the leakage of the system, the seal is not strict, the oil is in heat load for a long time, and the open oil storage and other reasons, the water and gas in the air settle in the oil, resulting in water and gas in the oil.
50kw Vacuum Lubrication Oil Purifier Description:
1. Sino-NSH-LV is a dehydration and degassing unit with thermal and vacuum processing. It is a multifuncational purifier which can treat various kinds of lubricant oils.
2. Sino-NSH-LV is mainly used to remove dissolved and fee water,and particulate impurities effectively so as to increase special indexes of lubricant oil. Combining with vacuum system, the multi-stage filtration system adopts a high dehydration efficiency,it has a strong anti-emulsifying capability, which could separate the large amount of water from oil and trace water from oil. The clearness of final oil can be under 6 NAS and water can be under 100PPM after processing with our machine.
3. Sino-NSH-LV maintains an optimized structure and safe controls so as to meet comprehensive requirements of transformer manufacturers and service companies.
50kw Vacuum Lubrication Oil Purifier Technical Parameters:
Parameter | Value | |||||||
LV-10 | LV-20 | LV-30 | LV-50 | LV-100 | LV-150 | LV-200 | ||
Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | |
Heating Power, kW | 15 | 18 | 30 | 45 | 90 | 120 | 180 | |
Total Power, kW | 17 | 21 | 35 | 50 | 96 | 126 | 186 | |
Power supply | Fully Customizable | |||||||
Inlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 | |
Outlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 | |
Dimensions (without trailer) |
length, mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
width, mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 | |
height, mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 | |
Weight(without trailer), kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 | |
Processed Oil Spec | Water Content, ppm | ≤100 | ||||||
Dielectric Strength, Kv | ≤6 | |||||||
Filtration Fineness, um | ≤5( or 1-5 as needed ) |
PS: we accept customization, welcome to inquiry!!
