Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | TF-30 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Total Power: | 27kW | Product Capacity: | 1800L/h |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
High Light: | Degassing Vacuum Turbine Oil Purifier,Dehydration Degassing Turbine Oil Purifier,PLC Degassing Turbine Oil Purifier |

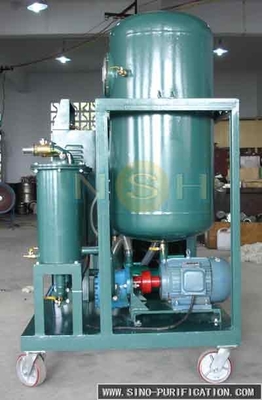

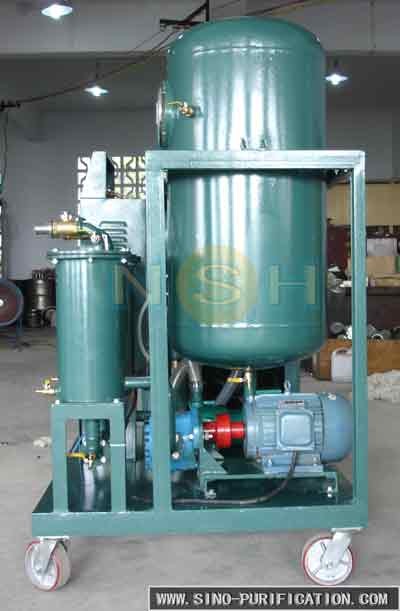

Single Axle Trailer Decontamination 27kw Vacuum Turbine Oil Purifier
Order Process:
Choose type→Sign the contract→Customization→The test→Delivery→Collect the goods
FAQ:
1.Are you a trading company or manufacturer?
Manufacturer.
2.Do you accept custom service?
Yes!
3.Do you offer free technical training?
Yes!
4.What's your Delivery Time?
20~30 days.
5.What payment terms do you accept?
T/T,Visa,L/C,West Union,PayPal.
6.Do you accept OEM?
Yes, we can manufacture according to clients requirement.
7. What is your packing?
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks.
27kw Vacuum Turbine Oil Purifier Advantages:
1. Dehydration demulsification efficiency is high
2. Strong filtration and purification performance
3. Good working stability
4. multi-usage
27kw Vacuum Turbine Oil Purifier Characteristics:
1. Vacuum oil filter is also called vacuum efficient oil filter, oil filter, vacuum clean oil machine.
2. Using vacuum oil inlet, a tubular rotary injector is installed to reduce the resistance, speed up the rotation, and increase the oil and gas separation effect.
3. Small size, light weight, easy to move, low noise, long continuous working time, stable performance, easy to operate.
27kw Vacuum Turbine Oil Purifier Technical Parameters:
Parameter | Value | |||||||
TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | TF-300 | ||
Capacity, liters/hour | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | |
Heating Power, kW | 15 | 24 | 30 | 48 | 72 | 96 | 120 | |
Total Power, kW | 18 | 17 | 34 | 53 | 78 | 103 | 129 | |
Power supply | Fully Customizable | |||||||
Inlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 | |
Outlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 | |
Dimensions (without trailer) |
length, mm | 1300 | 1300 | 1450 | 1650 | 1850 | 2000 | 2400 |
width, mm | 1900 | 900 | 1000 | 1150 | 1250 | 1350 | 1700 | |
height, mm | 1460 | 1460 | 1510 | 1560 | 1610 | 1660 | 1760 | |
Weight(without trailer), kg | 300 | 330 | 450 | 650 | 750 | 900 | 1500 | |
Processed Oil Spec | Water Content, ppm | ≤100 | ||||||
Dielectric Strength, Kv | ≥6 | |||||||
Filtration Fineness, um | ≤5( or 1-5 as needed ) | |||||||
Gas Content, % | ≤15 |
Other Models of TF Series Turbine Oil Purifier:
NSH-TF-E Explosion-proof Turbine Oil Purifier |
Sino-NSH-TF-E is explosion-proof type designed for flammable and combustible working conditions in power plant, petroleum, petrochemical, chemistry, metallurgy and other industries. NSH-TF-E adds an explosion-proof system compare to NSH-TF, using comprehensive explosion-proof technology. The components such as heating system, electric control system, motor and solenoid valves etc are well-selected explosion-proof type adapt to different danger level. |
NSH-TF-A Automatic Control Vacuum Turbine Oil Purifier |
Sino-NSH-TF-A isfully automatic unit developed based on NSH-TF, realize the intelligence of the machine and simplify the operation. Sino-NSH-TF-A utilizes the brand Programmable Logic Controller(P.L.C) and a series of instrumentations, alarms and interlocks to provide a fully automatic operation. Manual control of various functions is provided as required. Several Pilots Lights are provided to indicate operational atatus of key components and alarm conditions. With full scale of on-line testers and detectors as option, Sino-NSH-TF-A could implements accessible and reliable solutions for unique request and pratical usage. |
