Place of Origin: | China |
---|---|
Brand Name: | Sino-NSH |
Certification: | CE ISO |
Model Number: | VFD |
Minimum Order Quantity: | one set |
Packaging Details: | Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Function: | Dehydration, Degassing, Remove Impurities | Voltage: | 380V,220~415V,220V,380v/50hz,380v/50hz And As Your Option |
---|---|---|---|
Power(w): | 380V.50HZ (Customizable ) | Condition: | New |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Flow: | 10-500 L/MIN |
Weight: | 800-1600KGS,1500-2500 KG | Application: | Oil Purifier,oil Purification,oil Filtering |
High Light: | Remove Impurities Transformer Oil Purifier,600l/H Transformer Oil Purifier,75Kv Transformer Oil Purifier |
Insulating Oil Purifier Machine oil treatment oil recycling for transformer Oil Purifier

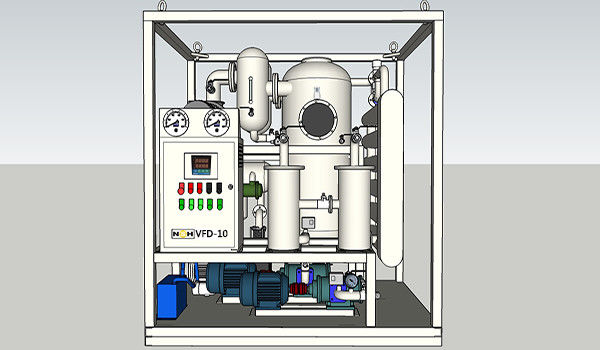

I. Transformer Oil Purifier Description
VFD series oil purifier is specialized in purifying insulating oil ,branded oil,transformer oil of high voltage and super high voltage transformer by removing free,soluble water,carbon,free and dissovled gases and particulate matters from insulating oil effectively and rapidly.
II.Transformer Oil Purifier Parameters
1. Flow Rate: 600 liters/hour ~ 18000 liters/hour
2. Moisture content after purification: less than 4 PPM
3. Gas content after purification: less than 0.1%
4. Breakdown voltage after purification: more than 75 KV
III. Transformer Oil Purifier Edges
1. High efficiency and effectiveness.
2. Enhance the value of breakdown voltage greatly.
3. Easy handling and maintenance.
4. Online work.
5. Lower maintenance and replacement expenses.
6. Small size, light weight, low noise
7. Various sizes and configurations (shield) available.
IV. Technical Specification of Vacuum Oil Purifier
Technical Specification | |||||||||
Item | Unit | VFD-30 | VFD-50 | VFD-80 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | |
Flow Rate | L/H | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 18000 | |
Vacuum Range | Mpa | -0.092 ~ -0.099 | |||||||
Working Pressure | Mpa | ≤0.2 | |||||||
Max Vacuum Range | Pa | ≤50 | |||||||
Temperature Range | ℃ | 45 ~ 65 | |||||||
Breakdown Voltage | Kv | ≥75 | |||||||
Impurity Size | μm | ≤5 | |||||||
Dielectric Loss | Tg | ≤0.005 | |||||||
Interfacial Tension | mn/m | ≥40 | |||||||
Water Content | PPM | ≤4 | |||||||
Gas Content | % | ≤0.1 | |||||||
Power Supply | 380V/3P/50Hz(or as needed) | ||||||||
Working Noise | dB(A) | ≤72 | ≤78 | ||||||
Heating Power | Kw | 30 | 48 | 72 | 90 | 120 | 180 | 240 | |
Total Power | Kw | 35 | 54 | 77 | 98 | 129 | 189 | 254 | |
Pipeline Diameter | mm | DN25 | DN32 | DN32 | DN40 | DN50 | DN65 | DN65 | |
Net Weight | Kg | 550 | 850 | 1000 | 1100 | 1400 | 1600 | 2200 | |
Size | length | mm | 1500 | 1500 | 1700 | 1900 | 2100 | 2100 | 2600 |
width | mm | 1200 | 1200 | 1500 | 1400 | 1550 | 1550 | 1800 | |
high | mm | 1750 | 1750 | 1850 | 1800 | 1900 | 1900 | 2000 |
V. Available Style

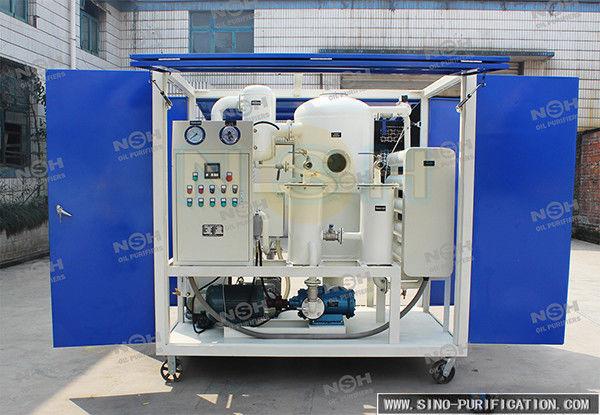

1. Fixing type,mobile type with four wheels and mobile type with trailer.
2. Normal appearance type,shelf-covering type and explosion-proof type.
3. Avaliable in different color.
VI. Relative Series:
VFD series oil purifier: Insulation oil purifier System specialize in purifying branded oil, insulation oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
TF series oil purifier: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series oil purifier: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series oil recycling: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
GED series oil recycling: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
Related Products:
Transformer oil filtration plant
Insulation oil purifier plant
Lubricant oil purifier plant
Turbine oil filtration plant
Waste oil recycling plant
Waste oil regeneration plant
Vacuum pump sets
Oil filter
