|Place of Origin:||CHINA|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks|
|Delivery Time:||10 working days|
|Supply Ability:||50 sets per month|
|Function:||Dehydration, Degassing, Remove Impurities||Flow Rate:||600-18000L/H|
|Power Supply:||380V/3P/50Hz(or As Needed)||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
|Color:||As Your Requirement||Product Name:||Insulation Oil Purifier|
oil purifier machine,
oil purifying machine

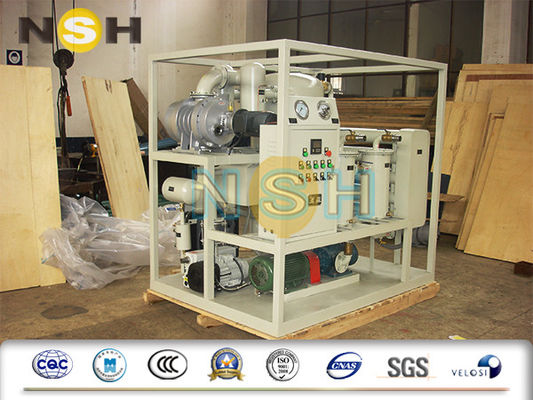

VFD 6000LPH transformer oil purifier/vacuum insulation oil filtration plant
I. Description of transformer insulation oil purifier
VFD Series double stage vacuum oil purifier is manufactured as per standards which go beyond Chinese legal mandates, the super big absorptive two stage vacuum purifies all insulation oil of power equipment rapidly and in more depth which removes water, gas and impurity in the oil rapidly and effectively with the support of high vacuum and absorption speed. Thus the strength of insulation oil is much increased and the time for oil treatment is shortened.
II. Another models of transformer oil purifier
VF series-- Single-Stage Vacuum Insulation Oil Filtration Machine. Easy to operate and low cost.
VFD series-- Double-Stage Vacuum Transformer Oil Filtration Machine. High efficienty working for improving the BDV.
VFD-R series-- Double-Stage Vacuum Insulation Oil Regeneration Filtration Machine. Change the color of old transformer oil.
III. Insulation oil purifier machines' features
1) Manufactured as per standards which go beyond the legal mandates, a primary breakdown voltage can raise 35KV and reduces the harm to the oil caused by normal purifiers due to repeated heating.
2) Big absorption speed double vacuum satisfies the needs of vacuum zing of transformer on an installation or repair site, and the water/gas removal of transformer oil can be completed at same time, which shortens significantly the time for oil treatment.
3) A unique gas/water removal system adopting stereo-evaporation technology, which rapidly separates the water and gas content in the oil and the system, is free of maintenance.
4) A superior purification system with top quality filter core, which can accommodate large quantity of dirt and is dandified progressively step by step. The filter core has got a high precision and multi-stage filtration.
5) Imported parts are used for all electric system, which ensures operation of the equipment with high performance.
6) An advanced infrared liquid level control system with automatic control, allowing separated operation of manual operators from a machine.
7) Purifiers are equipped with an interlocked safety protective device. I.E, backflow of A oil outlet over pressure can be achieved via an overflow valve, B oil inlet will interlock with heating system which avoids any possible negative impacts caused by mal-operation
8) Precision oil pumps for designated purpose are used, which have low noise and environmental regulatory compliance is well met
IV. Available Options of our tansformer insulation oil purifier
1. Normal appearance type,shelf-covering type and explosion-proof type. For Outdoor using.
2. Fixing type,mobile type with four wheels and mobile type with trailer. Indoor or factory using.
3. Avaliable in different color as you need.
V. Technical Specification
|Vacuum Range||Mpa||-0.092 ～ -0.099|
|Max Vacuum Range||Pa||≤50|
|Temperature Range||℃||45 ～ 65|
|Power Supply||380V/3P/50Hz(or as needed)|
VI. Another types of our oil purifier machines
TF series: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series: Ger Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
GED series: GED Series waste oil distillation machine is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
